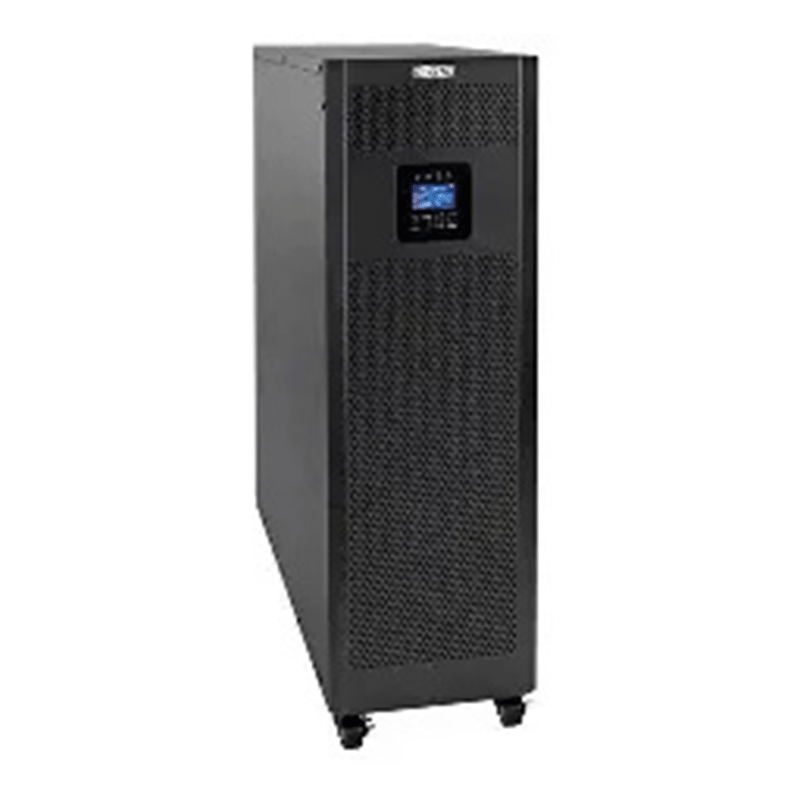

Tripp Lite SmartOnline S3MX 3‑Phase 60kVA / 54kW On-Line Double-Conversion UPS – Parallel, Single & Dual AC Input

SmartOnline S3MX Series 3-Phase 380/400/415V 60kVA 54kW On-Line Double-Conversion UPS, Parallel for Capacity and Redundancy, Single & Dual AC Input Tripp-Lite

Product Description

The Tripp Lite SmartOnline S3MX Series 60 kVA / 54 kW UPS is a high‑performance, three‑phase uninterruptible power supply (UPS) designed to provide clean, continuous, and highly reliable power for mission‑critical equipment such as servers, networking systems, telecommunications gear, and large‑scale industrial or commercial applications. It uses advanced on‑line double‑conversion technology to continuously condition incoming power and isolate connected equipment from disturbances, including voltage sags, spikes, harmonic distortion, and blackouts.

Here are the detailed specifications for the Tripp Lite SmartOnline S3MX Series 60 kVA UPS (model S3M60KXD) — a heavy‑duty 3‑phase, double‑conversion UPS designed for mission‑critical environments:

⚡ Power & Performance

• Output Power Capacity: 60 kVA / 54 kW (power load)
• UPS Topology: On‑line, double‑conversion (VFI)
• Input Voltage Range: 220–415 V AC (3‑phase)
• Output Voltage: 220/230/240/380/400/415 V ±1%
• Frequency: 50/60 Hz auto‑detect
• Power Factor (Output): ~0.99
• Waveform: Pure sine wave
• Maximum Current: ~93.2 A

🔌 Input & Output

• Input Phases: 3‑phase WYE
• Output Phases: 3‑phase
• Total Harmonic Distortion (THD): < 3 %
• Input Power Factor: ~0.99

🔋 Battery & Runtime

• Recharge Time: ~9 hours to full (typical)
• Battery Configuration: Requires external battery cabinets for runtime (e.g., BP480V series) — not built‑in internal batteries; these extend backup time based on configuration.

🧠 Efficiency & Protections

• Double‑Conversion Efficiency: ~94 %
• ECO Mode Efficiency: ~98 %
• Automatic Inverter/Bypass: Yes
• Cold Start Support: Yes
• Circuit Protection: Circuit breaker included

📟 Controls & Monitoring

• Front Panel: LCD display with status, load, battery, and fault info
• LED Indicators: Line, bypass, battery, fault
• Communications:
  • RS‑232 serial (DB‑9)
  • USB port
  • EPO (Emergency Power Off) port
  • Optional SNMP/WEB remote management via WEBCARDLX (optional add‑on)

🔧 Physical & Environmental

• Form Factor: Tower UPS
• Dimensions: ~110 cm (H) × 36 cm (W) × 79 cm (D)
• Weight: ~108 kg
• Operating Temperature: 0–40 °C
• Humidity: 5–95 % non‑condensing
• Noise Level: ~70 dBA

📜 Standards, Certifications & Warranty

• Certifications: CE, IEC/EN 62040 safety & EMC standards
• Compliances: RoHS compliant
• Warranty: Typically a limited 2‑year manufacturer warranty

Features

• Parallel Operation: Up to 3 units in parallel for capacity or redundancy
• Maintenance Bypass: Built‑in bypass to support service without load interruption

• True On‑Line Double‑Conversion Topology: Ensures that connected loads always receive regulated AC power with zero transfer time during mains disturbances.
• High Power Capacity: Delivers up to 60 kVA (54 kW) of output power, suitable for large loads and critical infrastructure.
• Flexible Input Voltage: Supports 3‑phase input voltages (380 V / 400 V / 415 V) and is compatible with different power systems.
• Efficient Operation: Achieves around 94 % efficiency in double‑conversion mode and up to 98 % in Eco/Economy mode, cutting energy costs and heat output.
• Parallel Capability: Can be configured in parallel with other units for capacity scaling or redundancy, improving uptime and fault tolerance.
• Single & Dual AC Input Options: Allows flexible input configurations for enhanced resilience.
• Expandable Runtime: External battery cabinets can be added to extend backup time during longer outages.
• Compact Footprint: Designed with a smaller physical size relative to its power class, making it easier to install in space‑restricted facilities.
• User Interface: Front‑panel LCD displays key status information like load level, input/output voltage, battery status, and more.
• Advanced Protection: Features active IGBT rectifier with DSP control for precise voltage and frequency regulation, low harmonic distortion, and improved generator compatibility.

🏢 Typical Applications

This UPS is ideal for protecting power infrastructure in environments such as:

• Data centers and server rooms
• Industrial automation systems
• Telecommunications facilities
• Financial or retail infrastructure
• Security and emergency systems

Its robust design and advanced features make it suitable for environments where power quality and continuity are critical.

Why Choose

Here’s why you might choose the Tripp Lite SmartOnline S3MX Series 60 kVA / 54 kW 3‑Phase On‑Line Double‑Conversion UPS for your power protection needs — what sets it apart and the key advantages it offers:

✅ 1. True On‑Line Double‑Conversion Power

This UPS continuously converts incoming AC to DC and then back to AC, so your equipment always sees clean, regulated power regardless of mains quality.
Benefits:

• Zero transfer time during power disruptions
• No exposure to sags, surges, frequency shifts, or noise
• Ideal for sensitive electronics like servers and networking gear

➡️ Best for mission‑critical environments where even brief power problems can cause downtime or data corruption.

✅ 2. High Capacity & Commercial‑Grade Performance

With up to 60 kVA / 54 kW capacity, this unit handles large loads — enough for small data centers, telecom rooms, industrial controls, or enterprise hardware racks.

Benefits:

• Supports high‑density equipment setups
• Ensures redundancy and headroom for future growth

✅ 3. Flexible Input Options

Supports 380 V / 400 V / 415 V 3‑phase input plus both single and dual AC input feeds.

Benefits:

• Works with a wide range of power infrastructures
• Dual input enhances feed redundancy

✅ 4. Parallel‑Ready for Redundancy or Capacity

You can parallel multiple units for:
✔ Increased power capacity
✔ N+1 redundancy

This means your critical loads stay protected even if one UPS fails.

✅ 5. High Efficiency — Lower Operating Costs

Efficiencies like ~94 % in online mode and up to ~98 % in Eco mode mean less wasted energy:

• Lower electricity bills
• Reduced heat and cooling load

✅ 6. Expandable Battery Runtime

External battery cabinets can be added for extended backup time.

Benefits:

• Customize runtime based on outage scenarios
• Scale up without replacing the UPS

✅ 7. Good Monitoring & Control

Front‑panel LCD plus optional remote management (SNMP/WEB) means you can:

• Track power status in real time
• Manage alerts and shutdowns remotely

✅ 8. Strong Compatibility & Protection

With low harmonic distortion and high input power factor:

• Works well with generators and transformers
• Minimizes stress on input sources

Ideal Use Cases

Choose this UPS if you need dependable uptime and power quality in environments like:

• Data center racks
• Telecom sites
• Industrial automation systems
• Financial/enterprise IT closets
• Security systems and access infrastructure

When It’s Especially Worth It

✔ You cannot tolerate power interruption
✔ You need precise voltage/frequency regulation
✔ You want scalable battery and power expansion
✔ You’re planning for future load growth or redundancy

When This Might Be Overkill

If your load is small (e.g., <10 kVA), or you don’t require true double‑conversion UPS protection, a smaller or line‑interactive UPS might be more cost‑effective.

In short:
You choose the SmartOnline S3MX UPS because it provides robust, flexible, scalable, and enterprise‑grade power protection — ideal for installations where maintaining uptime and power quality is crucial.
