2000VA/1200W LCD LINE INTERACTIVE UPS,WITH INTERNAL BATT, 3-PIN BS PLUG (4XC13 OUTLET + 2XC13 OUTLET FOR PROTECTION, + USB CABLE british cables) Comes With One Back To Back Cable & Power Cable
Description

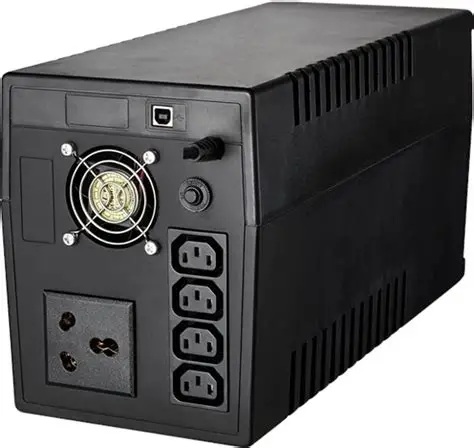

The KSTAR UA200 2000VA Line-Interactive UPS is a dependable power backup solution designed to protect critical electronic equipment from power outages, voltage fluctuations, and electrical surges. With a 2000VA / 1200W capacity, this UPS provides reliable backup power for computers, networking devices, POS systems, and other essential office equipment.
Equipped with Automatic Voltage Regulation (AVR), the UA200 stabilizes unstable voltage levels without switching to battery mode, ensuring consistent power delivery while extending battery life. During a power failure, the UPS automatically switches to battery power within milliseconds, allowing connected devices to continue operating or shut down safely without data loss.
The UA200 also features surge and overload protection, which safeguards sensitive electronics from sudden voltage spikes and electrical disturbances. Its LED status indicators provide clear information about the operating status, battery condition, and fault alerts, making it easy to monitor system performance.
Designed in a compact tower form factor, the KSTAR UA200 is ideal for home offices, small businesses, retail environments, and IT workstations that require stable and reliable power protection. Its combination of performance, efficiency, and ease of use makes it a practical solution for maintaining business continuity during unexpected power disruptions.
KSTAR UA200 2000VA / 1200W Line-Interactive UPS – Specifications
-
Product Model: UA200
-
Capacity: 2000VA / 1200W
-
UPS Technology: Line-Interactive UPS
-
Input Voltage: 110/120V AC or 220/230/240V AC
-
Input Voltage Range: 81–145V AC / 162–290V AC
-
Input Frequency Range: 50/60 Hz (±10%)
-
Output Voltage: 220–240V AC
-
Output Voltage Regulation: ±10% in battery mode
-
Output Waveform: Simulated Sine Wave
-
Transfer Time: Typical 2–6 ms (10 ms maximum)
Battery
-
Battery Type: Sealed Lead-Acid
-
Battery Configuration: 2 × 12V / 9Ah
-
Battery Voltage: 24V DC
-
Recharge Time: 6–8 hours to 90% capacity
Protection
-
Overload protection
-
Overcharge protection
-
Short-circuit protection
-
Surge protection
Indicators & Alarms
-
LED indicators: AC mode, Battery mode, Load level, Battery level
-
Audible alarms for battery mode, low battery, overload, and fault
Connectivity
-
USB communication port
-
Optional RS-232 interface
-
4 × IEC output sockets
Environmental
-
Operating Temperature: 0°C – 40°C
-
Humidity: 0–95% non-condensing
-
Noise Level: <55 dB
Physical
-
Dimensions: 158 × 380 × 198 mm
-
Weight: ~11.5 kg
-
Form Factor: Tower UPS
Compliance
-
Safety Standards: IEC/EN62040-1
-
EMC Standards: IEC/EN62040-2
