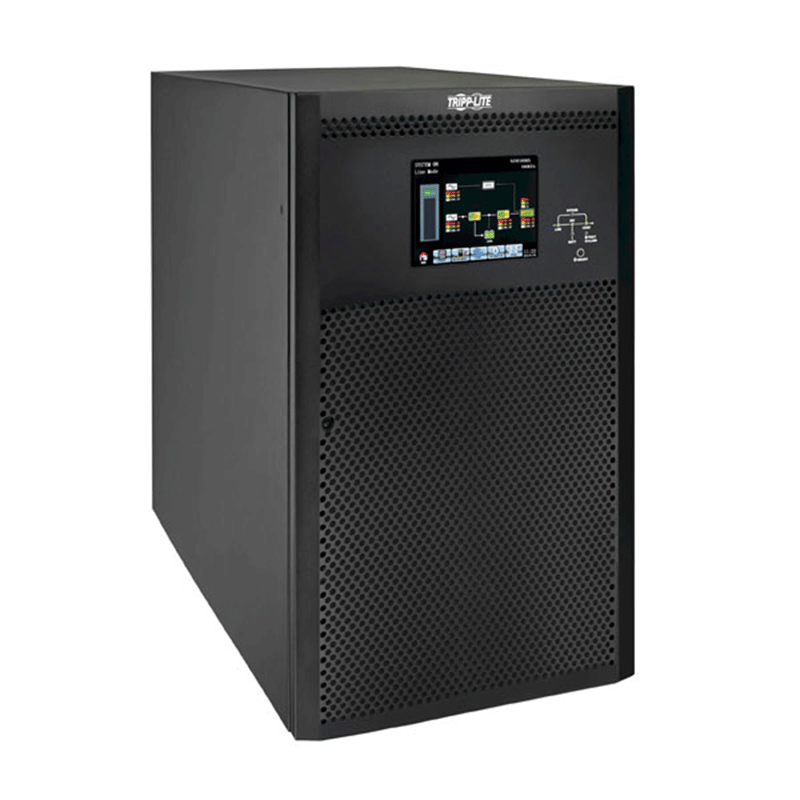

Tripp Lite SmartOnline S3MX 100kVA 90kW 3-Phase Online Double-Conversion UPS, 380/400/415V, Parallel Redundancy, Single/Dual Input

SmartOnline S3MX Series 3-Phase 380/400/415V 100kVA 90kW On-Line Double-Conversion UPS, Parallel for Capacity and Redundancy, Single & Dual AC Input Tripp-Lite

Description Overview

The Tripp Lite SmartOnline S3MX Series 3-Phase 380/400/415V 100kVA 90kW On-Line Double-Conversion UPS is a high-capacity power protection solution designed to deliver continuous, clean power for mission-critical environments. It uses true online double-conversion technology to condition incoming power and eliminate disturbances, ensuring zero transfer time during outages. The system provides up to 100kVA / 90kW of reliable three-phase power, making it suitable for large data centers, industrial operations, and enterprise IT infrastructure.

Engineered with advanced IGBT rectifier technology and voltage-and-frequency-independent (VFI) operation, the UPS maintains stable output power quality even under fluctuating utility conditions. Its compact footprint allows easier integration into space-constrained installations while maintaining high performance and scalability.

The unit supports parallel configuration for increased capacity or redundancy, and operates with high efficiency—up to 94% in double-conversion mode and 98% in ECO mode—reducing energy consumption and operating costs. Expandable external battery options provide extended runtime, while built-in monitoring interfaces and a large display enable simplified management and diagnostics.

Overall, this SmartOnline S3MX UPS delivers reliable three-phase power protection with scalability, efficiency, and advanced management features, making it ideal for protecting critical equipment from downtime caused by power disturbances.

🔹 Key Features

• ⚡ 100kVA / 90kW power capacity for large loads
• 🔌 3-phase input & output (380/400/415V)
• 🔄 True online double-conversion topology
• 🔗 Parallel capability for redundancy or scaling
• 📊 LCD display & monitoring
• 🧠 DSP-controlled IGBT rectifier for stable output
• 🔋 Expandable battery runtime with external packs
• 📡 Remote management (Ethernet / SNMP optional)

🔹 Specifications

• Capacity: 100,000 VA / 90 kW
• Input Voltage: 220/230/240/380/400/415V AC (3-phase WYE)
• Output Voltage: 220/230/240/380/400/415V ±1%
• Frequency: 50/60 Hz auto-select
• Power Factor: up to 0.99
• Efficiency: up to 94% online, 98% ECO mode
• Waveform: Pure sine wave
• Topology: On-line double conversion
• Transfer Time: 0 ms (battery mode)
• Cooling: Forced-air fan
• Form Factor: Tower
• Communication: RS-232, Ethernet, SNMP optional
• Operating Temperature: 0°C to 40°C

🔹 Applications

• Data centers
• Industrial automation
• Telecom infrastructure
• Banking & financial systems
• Healthcare equipment
• Security & surveillance systems
• Manufacturing plants

🔹 Why Choose This UPS

• ✔ Zero transfer time for uninterrupted power
• ✔ High efficiency reduces operating cost
• ✔ Scalable with parallel redundancy
• ✔ Supports dual input for higher reliability
• ✔ Clean sine wave output protects sensitive equipment
• ✔ Designed for mission-critical environments
