Tripp Lite 8-Port 1U Rackmount KVM Switch (B004-008)

Description Overview

The Tripp Lite B004-008 is a compact 1U rackmount KVM switch designed to control up to eight computers from a single keyboard, monitor, and mouse console. It supports PS/2 connections and allows IT administrators to easily switch between systems using front-panel push buttons or keyboard hotkeys. The device is plug-and-play, requires no software installation, and fits standard 19-inch racks, making it suitable for server rooms and data center environments.

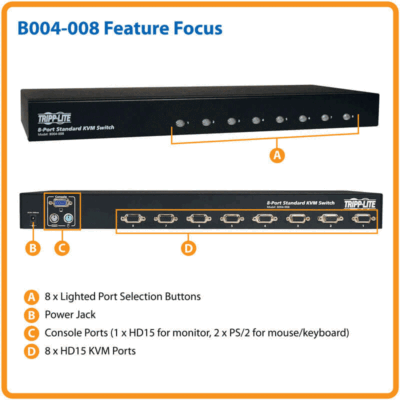

Key Features

• Control up to 8 computers from one console – Manage multiple servers using a single keyboard, monitor, and mouse setup.
• 1U rackmount design – Fits standard 19-inch racks and saves valuable rack space.
• Push-button & hotkey switching – Easily switch between connected systems from the front panel or keyboard commands.
• Quick View Scan mode – Automatically cycles through connected computers for monitoring.
• High video resolution support – Up to 1920 × 1440 for clear display output.
• Plug-and-play operation – No software required for installation or use.
• Broad OS compatibility – Works with major operating systems and multiple hardware platforms.
• Hot-pluggable ports – Add or remove computers without powering down the switch.

Specifications

• Model: B004-008
• Ports: 8 Computer Connections
• Console Ports: 1 (Keyboard/Mouse/Monitor)
• Form Factor: 1U Rackmount
• Video Resolution: Up to 1920 × 1440
• Interface: PS/2 (keyboard & mouse), VGA video
• Switching Method: Push buttons / Hotkeys
• Rack Size: 19-inch compatible
• Construction: Heavy-duty steel housing
• Power: Optional AC adapter included
• Compatibility: PC, Mac, Sun systems supported

Applications

• Data centers
• Server rooms
• Network operations centers
• IT maintenance workstations
• Multi-server management environments
