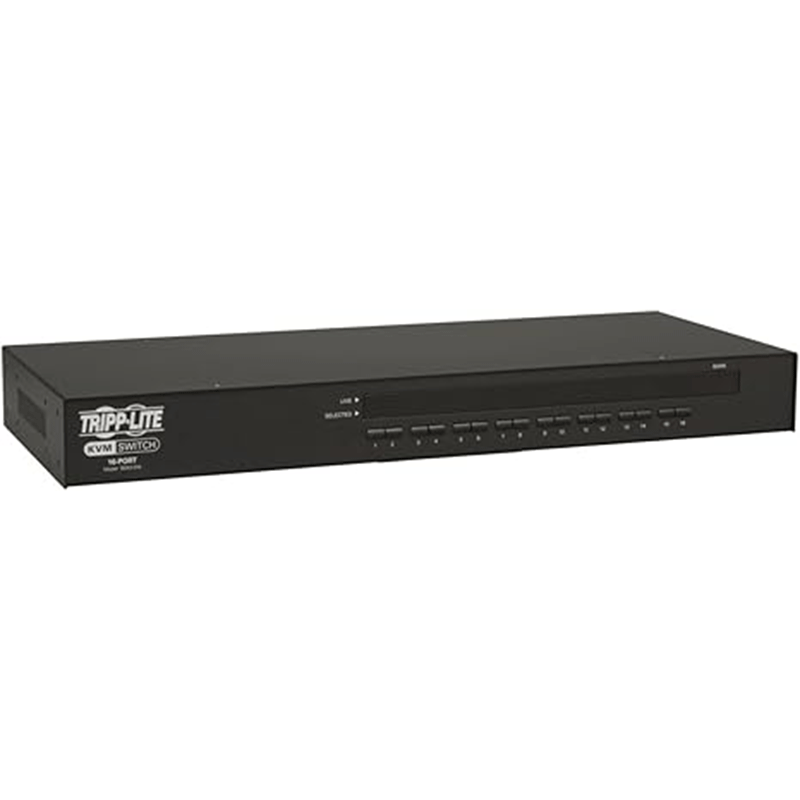

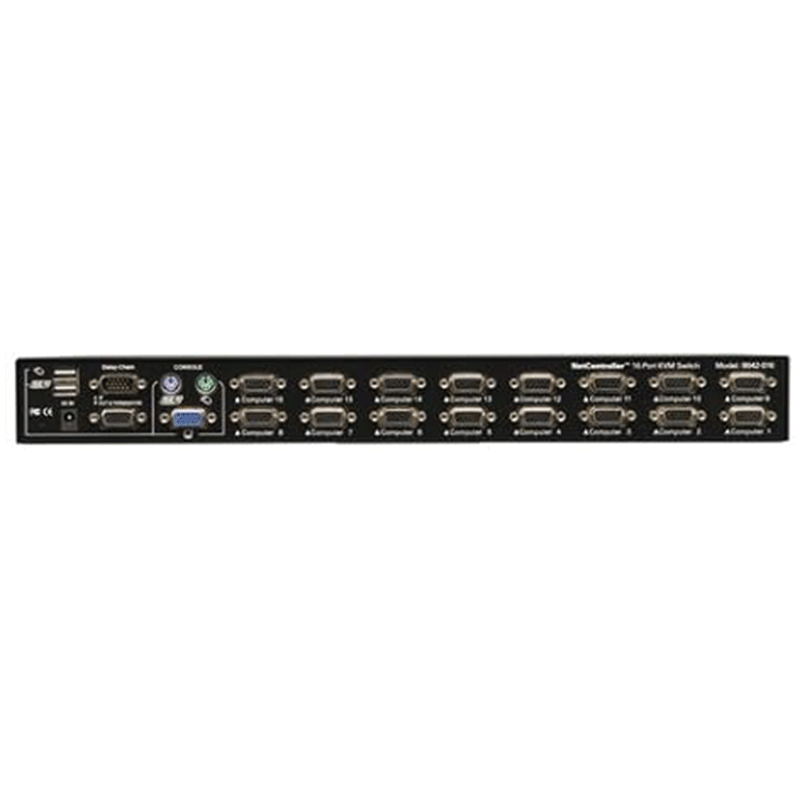

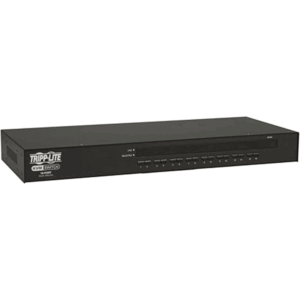

16-Port KVM Switch USB / PS2 with On Screen Display 1URM (B042-016)

16-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display, Control up to 256 computers by daisychaining up to 15 additional B040/42-Series KVM switches (Compatible with B040/42-Series KVMs only. Cannot be daisychained to other KVM series) – Compatible with all major operating systems

Product Overview – 16-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

This 16-port 1U rack-mount KVM switch allows a single user to control multiple computers from one keyboard, monitor, and mouse. It supports both USB and PS/2 connections and includes an intuitive on-screen display (OSD) for easy system management. The switch can directly manage up to 16 computers, and by daisy-chaining up to 15 additional compatible B040/42-Series units, you can control as many as 256 computers from a single console. It is designed for rack environments, supports major operating systems, and offers enterprise-level flexibility for data centers and server rooms.

General

• Model: Tripp Lite B042‑016 16‑Port 1U Rack‑Mount KVM Switch
• Series: NetController™
• Ports: 16 COMPUTER PORTS
• Rack Height: 1U (standard 19″ rackmount)
• Product Weight: Approx. 4.7 lb (2.13 kg)
• Housing Material: Heavy‑duty steel
• Color: Black

Console & Connectivity

• Keyboard & Mouse Interface (Console): USB and PS/2
• Video Interface (Console): VGA (SVGA)
• Supported Video Resolution: Up to 2048 × 1536 (QXGA)
• Port Switching Methods:
  • On‑Screen Display (OSD)
  • Front‑panel pushbuttons
  • Keyboard hotkeys

Daisy‑Chain & Expandability

• Daisy‑Chainable: Yes (with compatible B040/42‑Series units)
• Max Computers (Daisy‑Chained): Up to 256 systems

Power

• Input Voltage: 100‑240 V AC, 50/60 Hz
• Adapter Output: 9 V DC (varies by region)

Operating & Environmental

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: ‑20 °C to 60 °C (‑4 °F to 140 °F)
• Humidity: 0–90 % non‑condensing

Features

• Password protection & Auto‑logout
• Auto‑scanning for connected systems
• Firmware upgradeable
• Hot‑swappable (connect/disconnect systems without reboot)
• EDID compatible

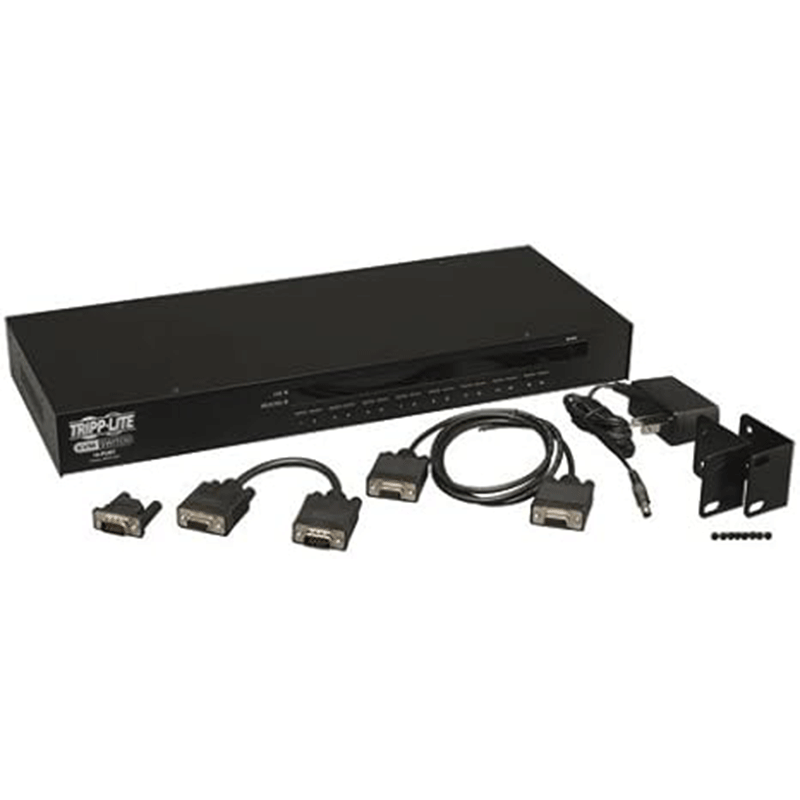

Package Contents

• KVM Switch unit
• External Power Supply
• Rackmount installation hardware
• Daisy‑chain cable (short)
• (Some sellers include firmware upgrade cable & manual)

Key Features

• Controls up to 16 computers directly using one VGA monitor, keyboard, and mouse
• Expandable to 256 computers by daisy-chaining up to 15 additional compatible switches
• USB & PS/2 compatibility for flexible server connections
• On-Screen Display (OSD) for simple switching and management
• Multiple switching methods – OSD, push buttons, or keyboard hotkeys
• Rack-mountable 1U design for space-efficient installation
• Supports video resolution up to 2048 × 1536 for clear display
• Hot-swappable ports allow connecting/disconnecting without rebooting
• Password protection and auto-logout for enhanced security
• Compatible with all major operating systems, including Windows, Linux, and others

Applications

1. Data Centers & Server Rooms
   • Centralizes control of multiple servers, reducing clutter and saving space in rack environments.
   • Ideal for managing virtualized servers, backup servers, and production servers efficiently from a single console.
2. IT Management & Network Operations Centers (NOCs)
   • Enables IT administrators to monitor and control multiple workstations and servers from one location.
   • Simplifies tasks like software updates, troubleshooting, and system maintenance across numerous machines.
3. Educational Institutions & Training Labs
   • Allows instructors or lab managers to control multiple PCs or workstations simultaneously.
   • Supports hands-on training environments where multiple computers need centralized monitoring.
4. Broadcasting & Media Production
   • Manages multiple editing workstations or render servers in a production environment.
   • Useful for video, audio, or graphics production where quick switching between systems is required.
5. Industrial Automation & Research Facilities
   • Provides centralized control of industrial PCs or laboratory servers.
   • Supports environments where monitoring and secure access to multiple systems is critical.
6. Remote Server Access (via Daisy-Chaining)
   • With up to 256 computers connected through daisy-chaining, IT teams can manage large-scale server farms without additional consoles.
   • Reduces the need for multiple keyboards, monitors, and mice, saving cost and space.

Why Choose This KVM Switch

• Ideal for data centers and server racks needing centralized management
• Scalable solution — grow from 16 to 256 systems without replacing hardware
• Mixed USB and PS/2 support for legacy and modern systems
• Rack-optimized design saves valuable rack space
• Flexible switching options for efficient multitasking
• Enterprise-grade reliability with durable steel housing
