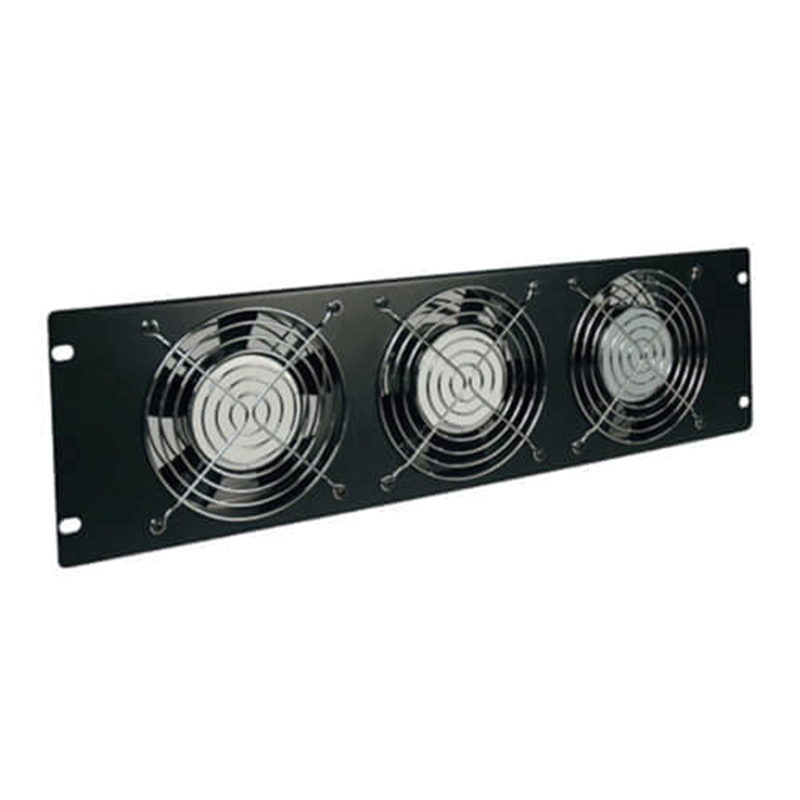

SmartRack 3U Fan Panel – 3 208-240V high-performance fans; 315 CFM; C14 inlet

About the Product

3U rack-mount fan panel for improved airflow in server racks and enclosures
Features 3 high-performance fans delivering 315 CFM of cooling
Operates on 208–240 V AC with a C14 power inlet
Constructed from durable cold-rolled steel with a black finish
Includes mounting hardware; power cord sold separately
Ideal for data centers, server rooms, and high-density equipment racks
Helps prevent equipment overheating and maintain optimal performance

Categories: Networking, Rack Accessories, Rack Mount Hardware

Description
Reviews (0)

SmartRack 3U Fan Panel – 3 208-240V high-performance fans; 315 CFM; C14 inlet

Product Description Overview

The Tripp Lite SmartRack 3U Fan Panel (SRXFAN3U) is a rack‑mount cooling accessory designed to improve ventilation in network racks, server cabinets, and SmartRack enclosures. It occupies 3 rack units (3U) of space and features three high‑performance fans operating on 208–240 V AC power to help maintain optimal airflow and reduce heat build‑up in enclosed equipment environments. The panel is constructed from cold‑rolled steel with a black finish for durability and aesthetics, and it mounts directly into standard 19″ rack rails. It includes the necessary mounting hardware and a C14 power inlet (power cord not included), making it ready to integrate into your rack setup for more effective cooling.

Specifications

Here are the specifications for the Tripp Lite SmartRack 3U Fan Panel – 3 208‑240 V high‑performance fans; 315 CFM; C14 inlet (model SRXFAN3U):

Electrical

Nominal Input Voltage: 208 V AC – 240 V AC (supports 208 V, 220 V, 230 V, 240 V) at 50/60 Hz
Power Connector: IEC C14 inlet (user‑supplied power cord required)

Cooling Performance

Fans: (3) high‑performance fans (4″ each)
Airflow: Approx. 315 CFM total (combined)
Sound Level (approx.): ≤ 45 dB (typical)

Mechanical & Physical

Rack Size: 3 U rack‑mount panel
Construction: Cold rolled steel with black finish
Dimensions:
• Width: 18.87 in (479.3 mm)
• Height: 5.22 in (132.6 mm)
• Depth: 1.50 in (38.1 mm)
Shipping Weight: ~6 lb (≈ 2.7 kg)
Color: Black

Package Contents

Fan panel with C14 inlet
Mounting hardware
(Power cord not included)

Compliance & Warranty

RoHS Compliant: Yes
Warranty: 2‑year limited

applications

Here are the primary applications for the SmartRack 3U Fan Panel (SRXFAN3UApplications / Use Cases

Rack & Cabinet Cooling
- Designed to be installed in 19″ server racks or SmartRack enclosures, the fan panel actively moves hot air out of the rack and draws in cooler ambient air, helping to maintain safe operating temperatures for servers, switches, and other IT equipment.
High-Density Equipment Environments
- Ideal for racks that host multiple servers, network switches, or storage devices, where heat can quickly accumulate. This fan panel improves air circulation to prevent thermal throttling and equipment failure.
Data Centers & Server Rooms
- Suitable for data centers, server rooms, and telecom closets, where maintaining proper airflow is critical. The panel supports 208–240 V AC power, matching standard commercial power supplies in these environments.
Home Labs & Small Business Racks
- Can also be used in home lab setups or small business racks to ensure equipment longevity and reduce noise from individual server fans by supplementing cooling.
Integration with Other Rack Accessories
- Works well in conjunction with blanking panels, cable management, and other SmartRack accessories to optimize airflow and prevent hotspots within the rack.
General Heat Mitigation
- Any enclosed equipment that generates heat—such as AV equipment, network switches, or UPS systems—can benefit from improved ventilation provided by this 3U fan pan
