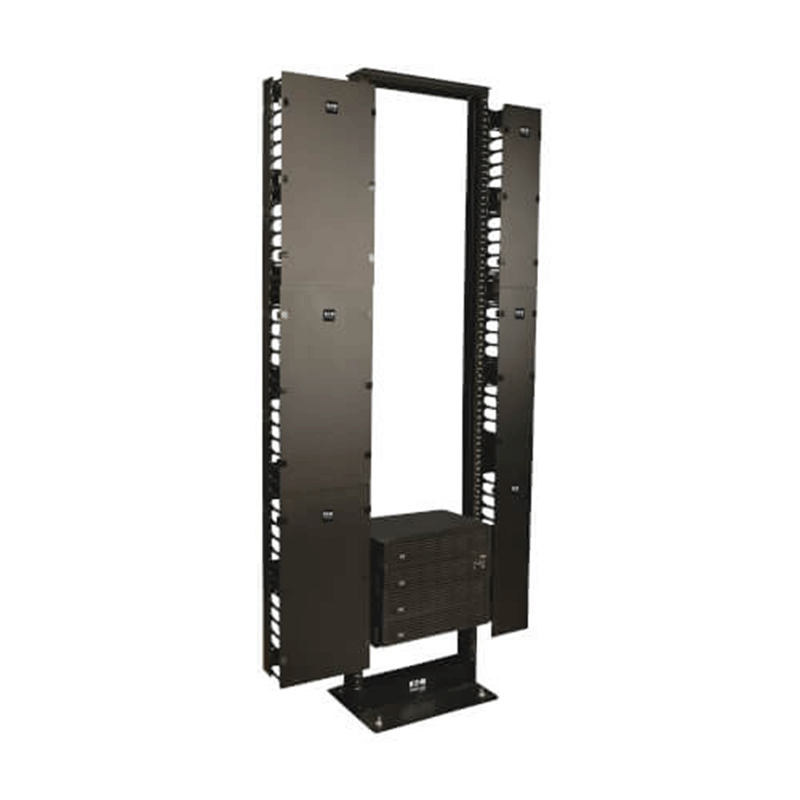

SmartRack 12 in. Width High Capacity Vertical Cable Manager – Double finger duct with cover

SmartRack 12 in. Width High Capacity Vertical Cable Manager – Double finger duct with cover

Product Description

The SmartRack 12 in. Width High Capacity Vertical Cable Manager (Model SRCABLEVRT12) is a rack‑mount cable management system designed to organize and route large bundles of cables in open server racks or network equipment frames. It features a double finger duct with a removable cover, providing easy access while keeping cables neat and protected.

Product Specifications

General

• Model: SRCABLEVRT12
• Series: SmartRack
• Type: High‑capacity vertical cable manager (double finger duct with cover)
• Application: Cable routing/organization in open rack frames

Dimensions

• Height: 6 ft (approx. 1.83 m)
• Width: 12 in (30.48 cm)
• Depth: ~6 in (152.91 mm / 15.29 cm)
• Unit Dimensions: 24.45″ × 12.90″ × 6.02″ (H×W×D)

Weight

• Unit Weight: ~9.20 lb (4.17 kg)
• Shipping Weight: ~31.30 lb (14.20 kg)

Construction

• Material: Cold‑rolled steel
• Color / Finish: Black

Cable Management

• Capacity: High — 12 in wide for large cable bundles
• Configuration: Split into three 2 ft (0.61 m) sections for flexible installation
• Design: Double finger duct with removable cover for easy access and routing

Mounting & Installation

• Mount Type: Toolless button mounts (attaches to open rack frame)
• Includes: Mounting hardware with finger duct covers

Compliance & Warranty

• Warranty: 5‑year limited warranty
• Compliances: RoHS (environmental compliance)

Package Contents

• Vertical cable manager unit
• 6‑ft double finger duct with cover
• Mounting hardware

Features

1. High-Capacity 12‑inch Width

The 12‑inch width of this vertical cable manager allows it to accommodate a large volume of network, power, and fiber cables. This high capacity is especially beneficial in enterprise or data center environments where multiple devices produce dense cable bundles. By providing ample space, it prevents overcrowding, reduces cable stress, and allows for proper airflow around the rack, which is critical for equipment cooling and long-term cable health.

2. Double Finger Duct Design

The double finger duct design is a versatile cable routing system that provides individual channels for organizing cables. This design ensures that each cable or bundle can be routed without tangling, maintaining order and preventing accidental disconnections during maintenance. The fingers also help maintain the proper bend radius of cables, reducing wear on delicate network or fiber cables and improving signal reliability over time.

3. Removable Cover

The cable manager includes a removable cover that snaps securely over the finger ducts. This feature protects cables from dust, debris, and accidental damage while still allowing easy access for adding, removing, or rerouting cables. Technicians can simply lift or remove the cover to perform maintenance without having to dismantle the entire rack setup, saving time and reducing operational interruptions.

4. Toolless Button Mounting

Installation is simplified with a toolless button mounting system, allowing the cable manager to attach directly to open-frame racks without the need for additional screws or brackets. This feature speeds up setup, reduces the risk of misalignment, and allows the unit to be repositioned or expanded easily as rack configurations change. It’s especially helpful in dynamic IT environments where frequent adjustments are common.

5. Durable Steel Construction

The vertical cable manager is constructed from cold-rolled steel with a black finish, giving it excellent durability and structural stability. This ensures that it can support heavy bundles of cables without bending or warping. The black finish provides a professional aesthetic that blends seamlessly with standard rack equipment, while also offering corrosion resistance for long-term use in server rooms or network closets.

6. Modular Section Design

Split into three 2‑ft sections, the manager offers a modular design that allows for flexible installation across racks of varying heights. Each section can be installed independently, making it easier to manage cables at different levels and customize the layout according to specific equipment needs. This modularity also simplifies upgrades, as additional sections can be added without replacing the entire unit.

7. Wide Applicability

This cable manager is suitable for open frame racks and large networking installations, making it a versatile solution for data centers, server rooms, and telecommunication closets. Its design supports both network and power cabling, ensuring that IT teams can maintain a neat, organized, and professional-looking rack setup. By separating cables vertically, it improves troubleshooting efficiency and reduces the chance of human error during maintenance.

Applications

• Data Centers: Organizes large volumes of network, power, and fiber cables vertically along racks, improving airflow and reducing clutter.
• Server Rooms: Keeps cabling neat and accessible, minimizing the risk of accidental disconnections and making maintenance faster.
• Telecommunication Closets: Provides a structured path for telecom and networking cables, supporting both copper and fiber installations.
• Network Equipment Racks: Ideal for open-frame racks housing switches, patch panels, routers, and UPS units, ensuring cables are separated and easily traceable.
• IT Infrastructure Upgrades: Facilitates easy addition or rerouting of cables during system expansions without disrupting existing setups.
• Professional Installations: Used in commercial and enterprise environments to maintain a clean, professional-looking rack layout for better troubleshooting and safety.
