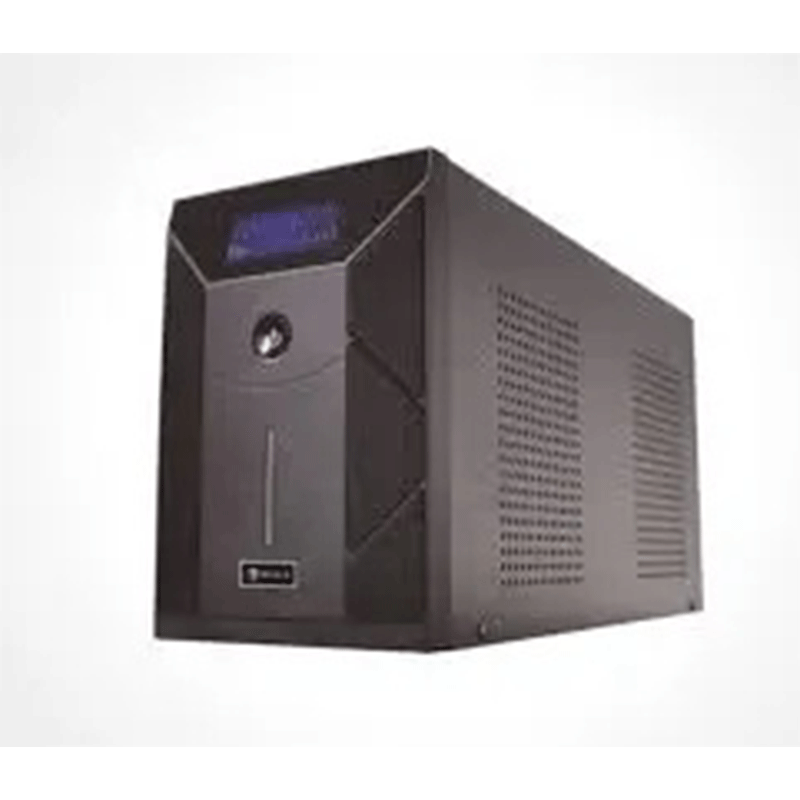

Shield AVR2000LCD 2000VA UPS

Shield AVR2000LCD 2000VA UPS – Specifications

• Capacity: 2000 VA / ~1200 W (approximate usable power)

• UPS Topology: Line-interactive with AVR (Automatic Voltage Regulation)

• Input Voltage: 220/230/240 V AC

• Input Voltage Range: ~162 – 290 V

• Input Frequency: 50/60 Hz auto-sensing

• Output Voltage (Battery Mode): 220/230/240 V ± 10%

• Output Frequency (Battery Mode): 50/60 Hz ± 1 Hz

• Transfer Time: Typical 2 – 6 ms, max ~10 ms

• Output Waveform: Simulated sine wave

• Battery Type & Qty: 12 V / 9 Ah × 2 (internal sealed lead-acid)

• Typical Recharge Time: ~4 – 6 hours to ~90% capacity

• Backup Runtime: Varies with load (e.g., ~10–20 min on typical PC loads)

• Communication: USB port for monitoring (optional)

• Protection: Over/under-voltage, surges, spikes, transients and other electrical abnormalities

• Display: LCD status panel (voltage, load, battery info)

• Dimensions: Approx 400 × 145 × 205 mm

• Weight: ~12 kg (some listings show up to ~21 kg)

• Warranty: Often listed with ~2 years limited warranty (varies by seller)

Key Features – Shield AVR2000LCD 2000VA UPS

• High Capacity 2000VA / ~1200W – Provides strong backup power for multiple devices such as desktops, routers, modems, CCTV systems and small servers. This capacity means it can support substantial loads during outages before the battery is depleted.

• Line-Interactive Topology with AVR (Automatic Voltage Regulation) – Uses line-interactive design to monitor and correct incoming mains voltage without always relying on the battery. The AVR stabilizes under-voltage or over-voltage situations, protecting your equipment and extending battery life by reducing unnecessary battery use.

• Wide Input & Output Voltage Range – Can operate over a broad range of input voltages and still supply steady output. This helps the UPS handle unstable mains power conditions common in many areas (like Kenya), offering reliable performance even when grid power fluctuates.

• LCD Display Panel – The built-in LCD screen shows real-time information such as input/output voltages, load levels, battery status and operating modes. This makes it easy to monitor the UPS health and power conditions at a glance.

• Comprehensive Protection Suite – Protects connected equipment from common electrical issues including over-voltage, under-voltage, surges, spikes, and transients. This reduces risk of damage to sensitive electronics during abnormal power conditions.

• Automatic Charging & Auto Restart – After a power outage, the UPS will auto-recharge its battery when mains returns and can automatically restart connected equipment. This ensures continuity and convenience without manual intervention.

• Low-Noise Design – Engineered to run quietly so it doesn’t cause disturbance in quiet environments like offices or homes. This is especially useful where noise is a concern.

• Compact & Space-Saving Form – Designed with a smaller footprint to fit easily in limited spaces, such as office corners, home study rooms, or server cabinets where floor space is limited.

• Optional USB/RJ45 Monitoring – With optional USB or RJ45 port support, the UPS can interface with computers or remote management systems, enabling you to monitor power events and UPS status over software.

• 2-Year Warranty – Typically offered with a 2-year limited warranty against manufacturer faults, giving users additional peace of mind regarding reliability and support.

Typical Applications for a Shield AVR2000LCD 2000VA UPS

• Desktop & Workstations – Keeps PCs, laptops and monitors running briefly during power outages, allowing users to save work and shut down safely without data loss. A 2000VA UPS can handle several desktops and monitors together.

• Home Office Setups – Provides backup for modems, routers, VoIP phones and network devices, ensuring Internet and communication stay alive during power interruptions.

• Small Business Computers & POS Systems – Ideal for point-of-sale terminals, cash registers, billing machines and business desktops so transactions and systems continue through short outages.

• Networking Equipment – Powers routers, switches, firewalls, network storage (NAS) and similar gear, protecting critical network infrastructure from sudden shutdowns and electrical irregularities.

• CCTV & Security Systems – Supports security cameras, DVR/NVR recorders so surveillance continues without interruption during grid failures.

• Small Servers – Offers backup for small business or home servers, helping prevent data corruption and allowing orderly shutdowns when mains power fails.

• Home Entertainment & AV Gear – Keeps TVs, gaming consoles, audio systems powered long enough to avoid abrupt shutdowns that can damage electronics or corrupt data.

• Electronic Devices & Peripherals – Useful for safeguarding printers, scanners, external drives and other peripherals from surges and brownouts.

💡 Why This Matters

A 2000VA UPS like the Shield AVR2000LCD not only keeps devices powered briefly during outages but also protects them from voltage fluctuations, spikes, surges and brownouts, helping prolong equipment life and prevent data loss or hardware damage.
