• Rack Capacity: 29U usable rack space

• Cabinet Dimensions (H × W × D): 2000 × 600 × 1200 mm

• Cabinet Width: 600 mm

• Maximum IT Load Capacity: Up to 3 kW

• Input Voltage: 220 / 230 / 240 V AC (Single Phase)

• Input Frequency: 50 / 60 Hz

• Input Requirement: 50A single-phase power input

Power Distribution

• PDU Type: Intelligent switched PDU

• PDU Input Rating: 32A

• PDU Outlets:

  • 18 × IEC C13 outlets

  • 6 × IEC C19 outlets

• Number of PDUs: 2 installed

UPS System

• UPS Model: Vertiv Liebert ITA2

• UPS Capacity: 5 kVA / 5 kW

• Backup Time: Approximately 10 minutes at 3 kW load

Cooling System

• Cooling Type: Integrated split air-conditioning system

• Cooling Capacity: 900 W – 3500 W variable speed

• Refrigerant: R410A

• Emergency Cooling: Built-in backup fans

Monitoring & Management

• Display: 9-inch LCD touchscreen panel

• Remote Monitoring: Web-based management interface

• Sensors: Temperature sensors and water leak detection

• Door Sensors: Door open/close monitoring

Additional Features

• Ingress Protection: IP5X dust protection

• Lighting: Automatic LED cabinet lighting (front and rear)

• Noise Level: Less than 58 dB

• Security: Lockable cabinet doors

• Lightning Protection: Level 3 surge protection (20kA)

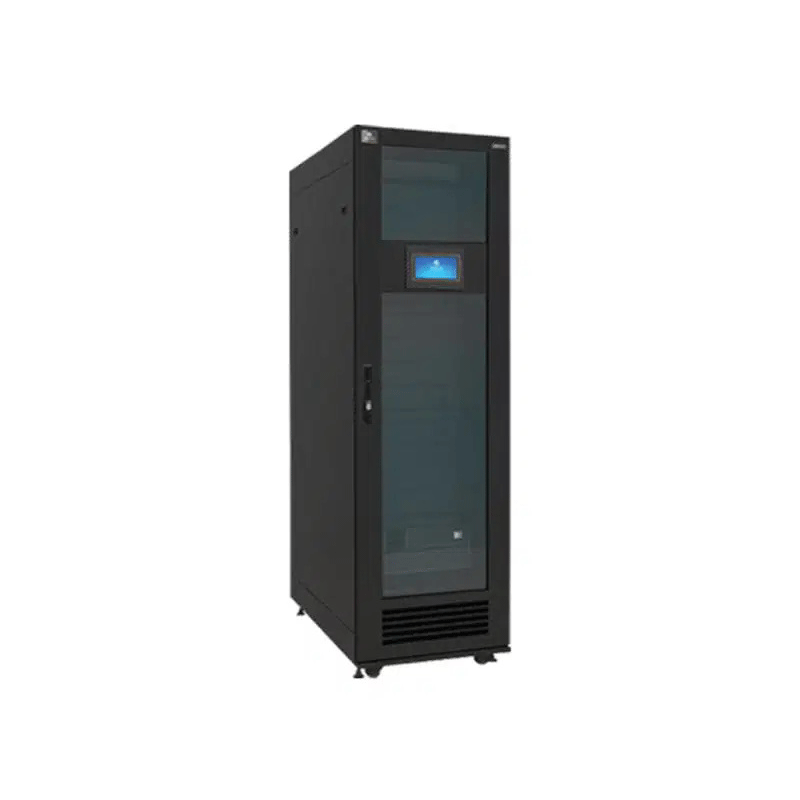

Vertiv SmartCabinet2 Split 32A 29U 600mm – Key Features

• All-in-One Integrated Micro Data Center
  The cabinet integrates essential data center components such as power distribution, cooling, monitoring, and rack space into a single enclosure, making deployment faster and easier without requiring a fully built data center environment.

• 29U Rack Capacity for IT Equipment
  With 29U of usable rack space, the cabinet provides enough room to install servers, storage systems, networking devices, and other critical IT equipment while maintaining organized cable management.

• Integrated Split Cooling System
  The built-in split air-conditioning system efficiently regulates internal temperature and removes heat generated by IT equipment, ensuring stable operation and preventing overheating.

• 32A Intelligent Power Distribution Unit (PDU)
  The integrated 32A smart PDU distributes power safely to connected devices while enabling power monitoring, overload protection, and remote control of individual outlets.

• Support for UPS Power Protection
  The cabinet is designed to support integration with UPS systems to provide reliable backup power during outages, protecting critical IT infrastructure from unexpected shutdowns.

• 9-inch Touchscreen Monitoring Panel
  A built-in LCD touchscreen allows administrators to easily monitor system parameters such as power usage, temperature, alarms, and cooling status directly from the cabinet.

• Remote Monitoring and Management
  Through network connectivity, administrators can remotely monitor the cabinet’s status, receive alerts, and manage power and environmental settings from a central management interface.

• Environmental Monitoring Sensors
  Integrated sensors continuously track environmental conditions such as temperature and humidity, helping detect abnormal conditions early and protect sensitive IT equipment.

• Secure and Enclosed Cabinet Design
  The fully enclosed cabinet structure protects equipment from dust, unauthorized access, and external environmental factors while improving airflow efficiency.

• Automatic LED Cabinet Lighting
  LED lighting inside the cabinet automatically activates when the doors are opened, making it easier for technicians to install, inspect, or maintain equipment inside the rack.

Vertiv SmartCabinet2 Split 32A 29U 600mm – Applications

• Edge Computing Environments
  The cabinet is ideal for edge computing deployments where IT infrastructure needs to be installed close to users or devices, providing reliable power, cooling, and monitoring in a compact integrated system.

• Branch Offices and Remote Sites
  It provides a complete mini data center solution for branch offices where space and dedicated IT facilities are limited, ensuring servers and network equipment operate safely and efficiently.

• Small Data Centers
  Organizations with small data center requirements can use this cabinet to host servers, storage systems, and networking equipment while benefiting from built-in cooling, power protection, and monitoring.

• Telecommunication Facilities
  Telecom operators can deploy the cabinet at network edge locations to support communication equipment while maintaining stable environmental conditions and reliable power distribution.

• Retail Stores and Commercial Outlets
  Retail environments that rely on local servers, POS systems, and networking infrastructure can use the cabinet to securely house and protect their IT equipment.

• Banking and Financial Branches
  Financial institutions can deploy the cabinet in branch offices to support secure data processing systems while ensuring continuous operation and infrastructure protection.

• Healthcare Facilities
  Hospitals and clinics can use the cabinet to support critical medical IT systems and patient data servers while maintaining stable power and cooling conditions.

• Education Institutions
  Schools and universities can use the cabinet to house campus network equipment and servers in a secure and organized environment.

• Industrial and Manufacturing Sites
  The cabinet can support factory network infrastructure, automation systems, and industrial IT equipment in environments where compact and protected installations are required.

Why Choose Vertiv SmartCabinet2 Split 32A 29U 600mm

• All-in-One Micro Data Center Solution
  The cabinet integrates essential infrastructure such as rack space, cooling, power distribution, monitoring, and security into one system, allowing organizations to deploy IT equipment without building a full data center facility.

• Fast and Easy Deployment
  Because the system is pre-engineered, factory-assembled, and pre-tested, it can be installed and operational much faster than traditional data center setups, significantly reducing installation time and complexity.

• Efficient Cooling and Energy Savings
  The integrated split cooling system with variable speed technology adjusts cooling based on the IT load, ensuring stable temperatures while improving overall energy efficiency.

• Reliable Power Distribution and Protection
  With intelligent 32A PDUs and support for UPS systems, the cabinet ensures stable power delivery, overload protection, and continuous operation for critical IT equipment.

• Advanced Monitoring and Management
  The built-in monitoring system and 9-inch LCD touch panel allow administrators to easily track power usage, cooling performance, environmental conditions, and system alarms locally or remotely.

• Secure and Protected IT Environment
  The fully enclosed cabinet design provides protection from dust, unauthorized access, and environmental disturbances while maintaining proper airflow and low noise levels.

• Centralized Multi-Site Management
  The system can integrate with centralized monitoring platforms, enabling IT teams to manage multiple SmartCabinet deployments across different locations from a single interface.

• Compact Design for Edge Locations
  With its space-saving footprint and integrated components, the cabinet is ideal for branch offices, retail outlets, telecom sites, and edge computing environments where space and infrastructure are limited.
