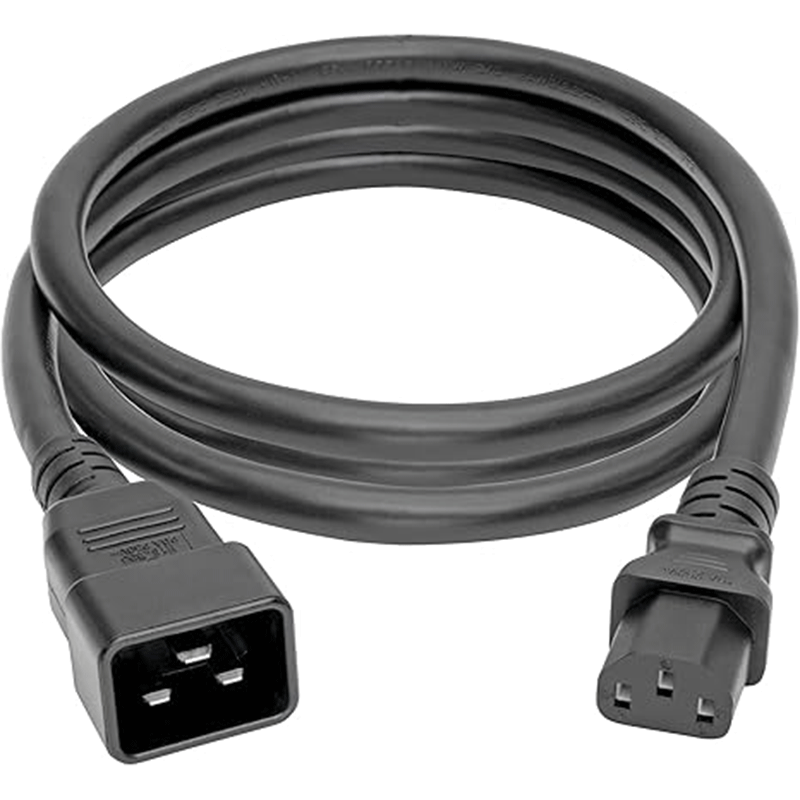

P032-003 – C20 to C13 Power Cable for Computer – Heavy Duty, 15A, 100-250V, 14 AWG, 3 ft., Black

P032-003 – C20 to C13 Power Cable for Computer – Heavy Duty, 15A, 100-250V, 14 AWG, 3 ft., Black

Product Overview

The P032‑003 is a heavy‑duty IEC power cord designed to connect electronic equipment that uses a C13 inlet to a power source with a C20 outlet. It’s commonly used in data centers, server racks, UPS systems, PDUs, and other professional IT gear that require a more robust cable for higher current loads.

Technical Specifications

General

• Model: P032‑003
• Product Type: Heavy‑duty IEC power cable
• Color: Black
• Length: 3 ft (0.91 m)
• Country/Region: North America
• UPC: 037332190123

Connectors

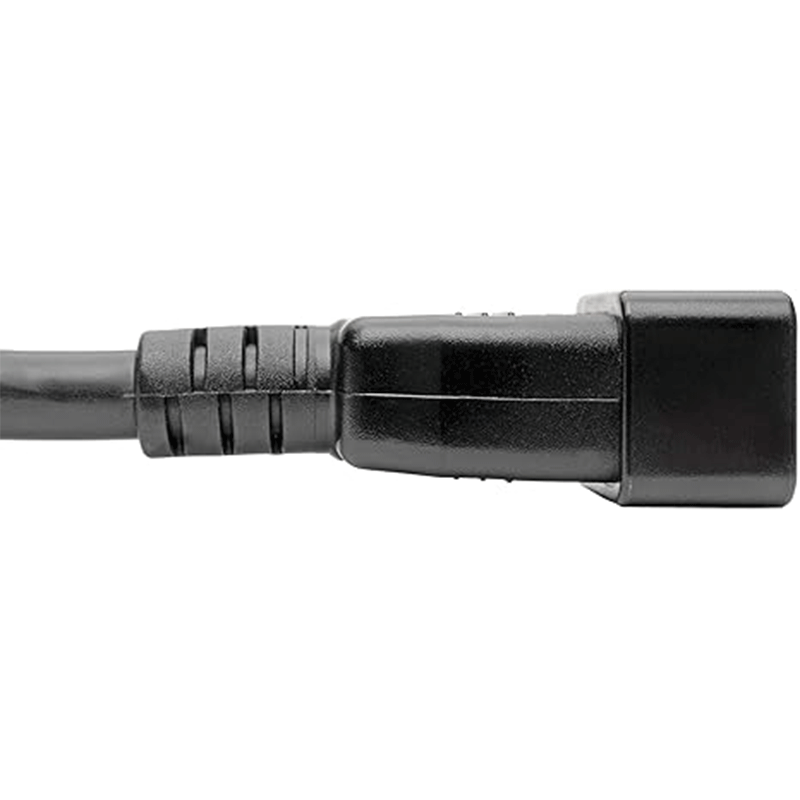

• Side A: IEC 60320 C20 male plug

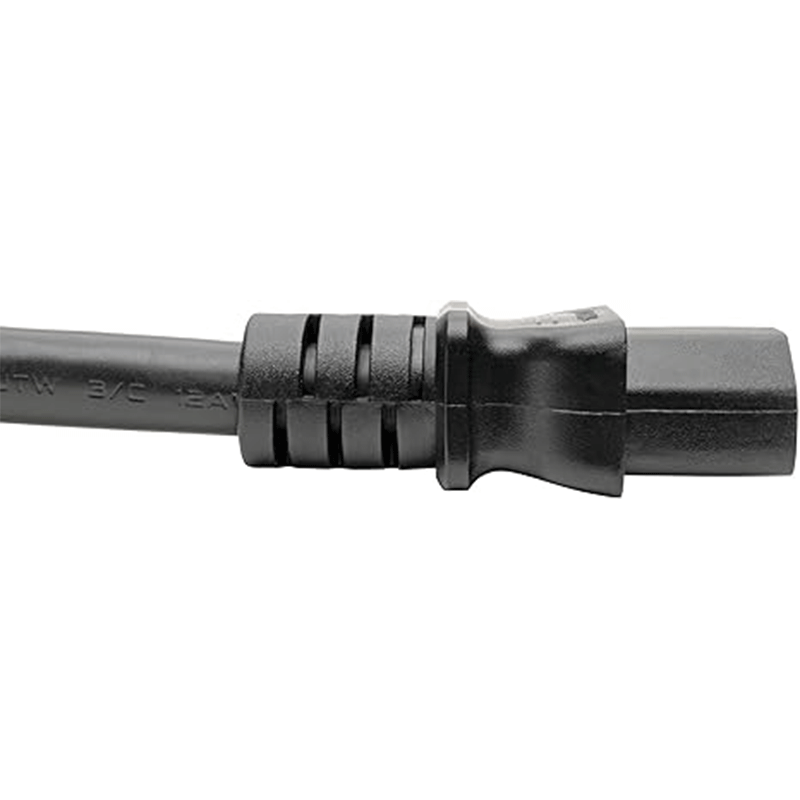

• Side B: IEC 60320 C13 female coupler
  (Used to connect devices with C14/C19 inlets to PDU/UPS outlets with C20 receptacles.)

Electrical Ratings

• Voltage Rating: 100 – 250 VAC
• Current Rating: 15 A
• Wire Gauge: 14 AWG (thicker heavy‑duty conductors)
• Number of Conductors: 3

Cable & Jacket

• Cable Type: SJTW industrial‑grade jacket
• Cable Jacket Material: PVC (polyvinyl chloride)
• Outer Cable Diameter: ~9.3 mm
• Jacket Rating: VW‑1 flame test rating

Operating Conditions

• Operating Temp: –20 °C to 60 °C (–4 °F to 140 °F)
• Operating Humidity: 10% to 65% RH

Certifications

• UL Listed, cUL Listed
• RoHS compliant

Physical & Shipping

• Product Weight: ~0.57 lb (≈0.26 kg)
• Country of Origin: Vietnam (typical for this model)

Package Contents

• One P032‑003 C20 to C13 power cable, 3 ft, black

Key Features

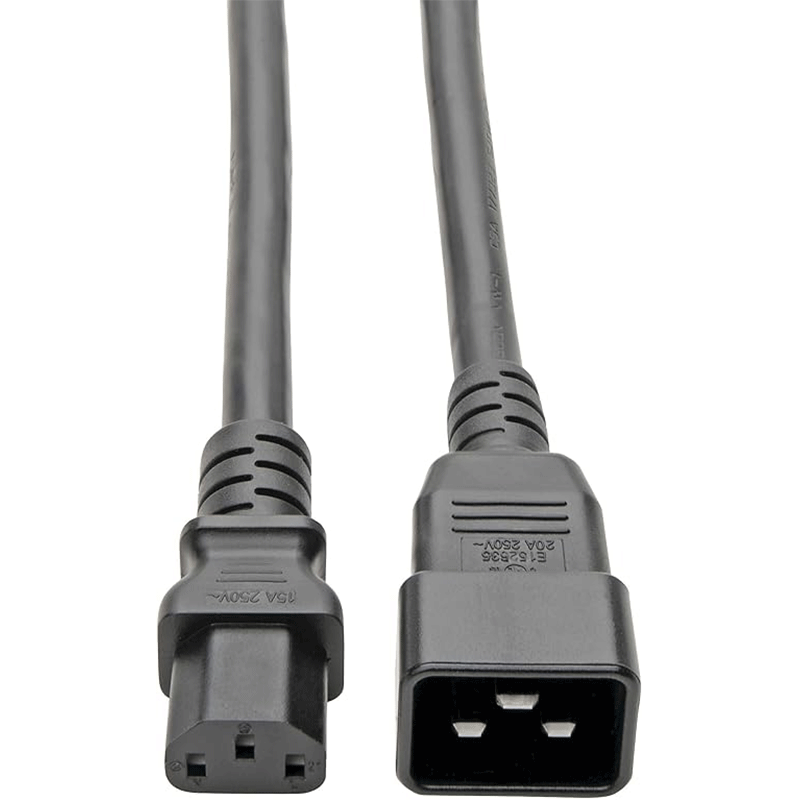

• Connector Types:
  • One end with IEC C20 male plug
  • Other end with IEC C13 female coupler
    These connectors match standard IT power interfaces used on servers, network devices, and some high‑draw computers.
• Heavy‑Duty Cable:
  Uses 14 AWG thick wire to safely carry up to 15 amps of current, suitable for higher‑power equipment.
• Voltage Compatibility:
  Rated for 100–250 V, making it suitable for global AC power inputs.
• Length & Design:
  A 3‑foot (0.91 m) length helps keep setups tidy without excessive cable slack, ideal for tight rack spaces or short runs.
• Durability:
  Rugged construction with molded connectors and a robust jacket for reliable long‑term use in demanding environments.

Typical Uses

• Connecting servers, computers, network appliances, UPS units, or PDUs to power sources with C20 outlets
• Upgrading or replacing standard power cords with a more durable, higher‑current‑capable cable
• Reducing cable clutter in rack installations with a short, heavy‑gauge cord
