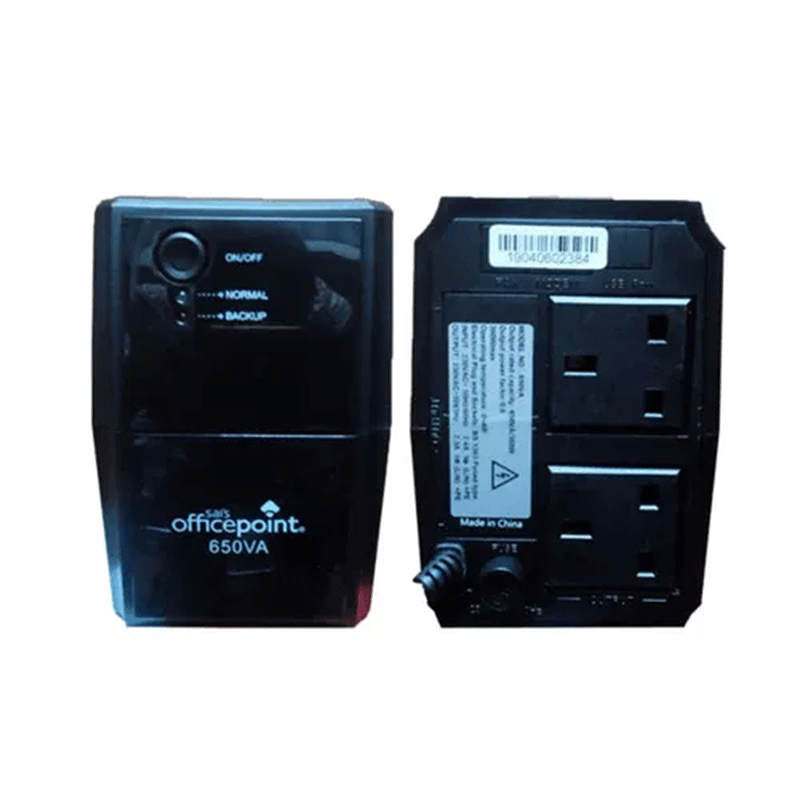

OfficePoint Back-Up UPS 650VA (03UPS0001)

Description Overview

The OfficePoint Back-Up UPS 650VA (03UPS0001) is a compact and reliable uninterruptible power supply designed to provide short-term backup power and protect electronic devices from power-related issues. Built with line-interactive technology, it automatically regulates voltage levels to guard against fluctuations, surges, and sudden outages. When mains power fails, the UPS switches to its internal battery, allowing connected devices such as desktop computers, routers, and small office equipment to continue running for a few minutes—enough time to save work and shut down safely. It features a sealed lead-acid battery, simulated sine wave output, and essential protections like overload and surge protection, making it a practical and affordable solution for home and small office use.

Specifications

• Brand: OfficePoint
• Model: 03UPS0001 / 650VA
• Capacity: 650VA / ~390W

Battery

• Type: Sealed Lead Acid (SLA)
• Configuration: 1 × 12V 7Ah battery
• Recharge Time: ~6–8 hours to full charge

Electrical Specifications

• Input Voltage: 180V – 230V AC
• Output Voltage: 230V (regulated)
• Frequency: 50Hz (battery mode ±1Hz)
• Transfer Time: ~10ms
• Waveform: Simulated sine wave

Connectivity & Ports

• Communication Ports: USB
• Protection Ports: RJ-11 / RJ-45 (phone/network protection)

 Protection Features

• Overload protection
• Short circuit protection
• Overcharge & deep discharge protection
• Surge and spike protection

 System Features

• Line-interactive UPS with Automatic Voltage Regulation (AVR)
• Microprocessor-controlled system
• Cold start capability
• Auto restart when power returns
• Off-mode charging

 Physical Details

• Weight: ~4.9 kg
• Dimensions: 34 × 9.5 × 16.5 cm
• Color: Black

What’s in the Box

• UPS Unit
• User Manual

 Warranty

• 12 months warranty

Features

1. Battery Backup Power

This UPS has a built-in rechargeable battery that automatically takes over when electricity goes off. It provides temporary power (usually a few minutes) so you can save your work and safely shut down your devices instead of losing data or damaging hardware.

 2. Automatic Voltage Regulation (AVR)

AVR helps stabilize electricity by boosting low voltage and reducing high voltage to safe levels. This means your devices receive consistent power even when there are fluctuations, preventing damage caused by unstable electricity.

 3. Surge & Spike Protection

The UPS protects connected equipment from sudden power surges and spikes, which can occur during lightning or power restoration. This feature ensures your devices like PCs and routers are safe from electrical damage.

 4. Line-Interactive Technology

It uses line-interactive technology, meaning it continuously monitors incoming power and quickly switches to battery when needed. This ensures minimal interruption (milliseconds) so your devices keep running smoothly.

5. Intelligent Battery Management

This feature ensures the battery is charged efficiently and safely, helping to extend battery life, improve performance, and increase reliability over time.

 6. Multiple Device Support

The UPS comes with multiple outlets, allowing you to connect several devices at once such as a desktop computer, monitor, and router, making it suitable for small office or home setups.

 7. Audible Alarms & Indicators

It includes sound alerts and LED indicators that notify you about power status, low battery, overload, or faults. This helps you respond quickly to power issues.

8. Cold Start Function

With cold start capability, the UPS can power devices directly from the battery even when there is no main electricity, which is useful during complete blackouts.

 9. Auto Restart Function

Once electricity is restored, the UPS can automatically restart and resume normal operation, saving you the trouble of manually turning it back on.

10. Resettable Circuit Breaker

Instead of replacing a fuse after an overload, the UPS has a resettable circuit breaker, making it easier and faster to recover from overload situations.

11. Communication & Protection Ports

It includes USB and RJ11/RJ45 ports, allowing device monitoring and protecting network/phone lines from electrical surges.

12. Advanced Safety Protections

The UPS is designed with multiple safety features including:

• Overload protection
• Short circuit protection
• Overcharge & deep discharge protection

These ensure both the UPS and your connected devices remain safe under different conditions.

Applications

OfficePoint Back-Up UPS 650VA (03UPS0001)

The OfficePoint Back-Up UPS 650VA is designed for low-power, everyday electronics that need short-term backup and protection. Here’s where it’s commonly used:

1. Desktop Computers

Ideal for powering a desktop PC and monitor during outages. It gives you enough time to save files and safely shut down, preventing data loss or system damage.

2. Routers & Modems

Perfect for keeping internet devices running during blackouts. Since routers use low power, the UPS can keep them on for a longer time compared to PCs.

 3. POS (Point of Sale) Systems

Used in shops and businesses to keep billing systems operational during power interruptions, helping avoid transaction disruptions and loss of sales.

 4. CCTV & Security Systems

Provides backup for security cameras and DVR/NVR systems, ensuring continued surveillance even when power goes off.

5. Home Electronics

Suitable for small home setups like:

• TVs (small/medium size)
• Decoders
• Charging small devices

It protects them from power surges and sudden shutdowns.

6. Small Office Equipment

Supports basic office devices such as:

• Printers (low power)
• Networking devices
• Workstations

Helps maintain workflow during short outages.

 7. Networking & Communication Equipment

Used for devices like:

• Switches
• VoIP phones
• Modems

Ensures continuous communication and connectivity.

Simple Summary

👉 Best for: Low-power devices + short backup time
👉 Purpose: Keep devices running briefly & protect them from power issues
