Description Overview

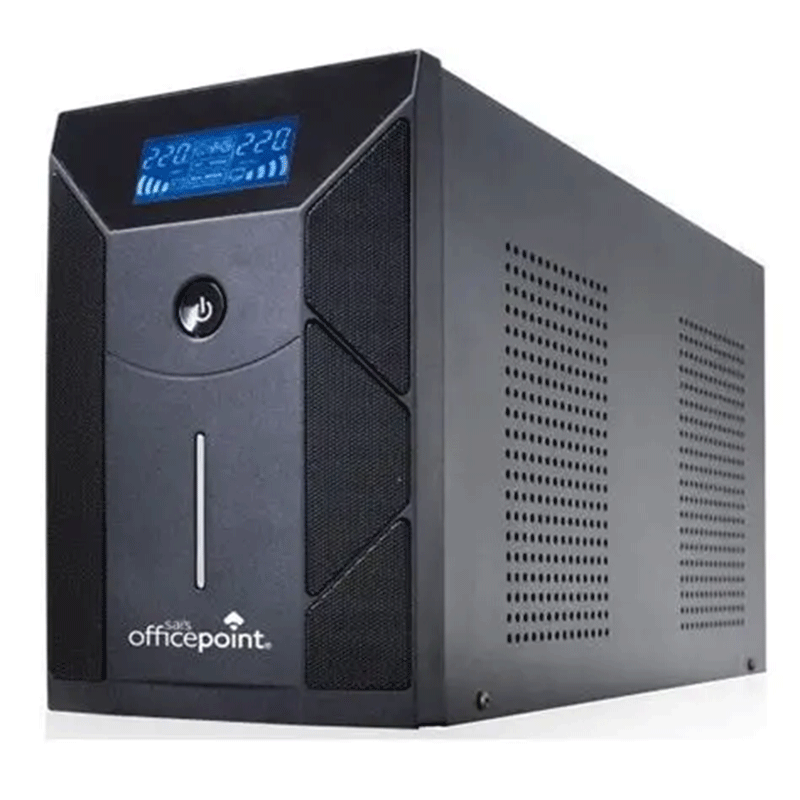

The OFFICEPOINT Line Interactive UPS 2000VA is a reliable uninterruptible power supply system designed to provide backup power and protect electrical equipment from power interruptions and voltage fluctuations.

It uses Line Interactive technology with Automatic Voltage Regulation (AVR) to automatically stabilize low or high voltage without immediately switching to battery power, helping extend battery life and ensure stable output power.

With a 2000VA capacity, it is suitable for powering multiple office or home devices such as computers, routers, CCTV systems, and small office equipment during power outages.

The unit comes with 3 universal sockets, allowing flexible connection of different plug types without needing adapters.

It features a fast transfer time (typically under 10ms), ensuring connected devices experience minimal interruption when switching from mains power to battery mode.

Built with maintenance-free sealed lead-acid batteries, the UPS provides short-term backup power to allow safe shutdown of devices during outages while protecting them from surges, overloads, and short circuits.

Overall, it is designed for small offices, retail environments, and home setups that need stable power protection and short-duration backup support.

Key Specifications

• Capacity: 2000VA (approx. 1200W load capacity)
• UPS Type: Line Interactive
• Topology: AVR (Automatic Voltage Regulation) built-in
• Input Voltage: 230V AC (typical range ~175–275V)
• Output Voltage: 230V ±10V (regulated)
• Output Waveform: Simulated / modified sine wave (battery mode)
• Frequency: 50/60Hz auto-sensing
• Transfer Time: <10ms (fast switch to battery)
• Battery Type: Sealed Lead Acid (maintenance-free)
• Battery Configuration: Typically 4 × 12V batteries (commonly 7Ah)
• Recharge Time: ~4–6 hours to 90% capacity
• Sockets: 3 × Universal output sockets
• Protection Features:
  • Overload protection
  • Short circuit protection
  • Surge protection
  • Low battery protection
• Indicators: LCD display (load, battery status, input/output status)
• Cold Start Function: Yes (can power on without mains supply)
• Auto Restart: Yes (after power restoration)
• Charging Function: Auto-charging even when UPS is OFF
• Noise Level: Low operational noise (fan-cooled)

Features

• Line Interactive Technology
  This UPS normally runs devices directly from mains power while constantly monitoring voltage. When there is a power cut or voltage drop/rise, it quickly switches to battery mode, ensuring your devices continue running with minimal interruption.
• Automatic Voltage Regulation (AVR)
  AVR automatically corrects low or high voltage without using the battery. This protects your equipment from unstable power conditions and helps extend battery life because the UPS does not switch to battery unnecessarily.
• 2000VA High Capacity Backup
  The 2000VA rating allows the UPS to support multiple devices like PCs, routers, and CCTV systems at the same time. It provides enough backup power to safely save work and shut down equipment during outages.
• Fast Transfer Time (<10ms)
  When power fails, the UPS switches to battery almost instantly (less than 10 milliseconds). This very short delay helps prevent sudden shutdowns or data loss in connected devices.
• 3 Universal Output Sockets
  The UPS comes with universal sockets that can accept different plug types. This makes it flexible for connecting various devices without needing adapters.
• Sealed Maintenance-Free Battery System
  It uses sealed lead-acid batteries that do not require regular maintenance. These batteries are designed for reliability and provide backup power when needed during outages.
• Overload Protection
  The UPS automatically detects when too many devices are connected or when power demand is too high. It then protects itself and the connected equipment by shutting down or limiting output.
• Surge and Spike Protection
  It protects connected devices from sudden power surges or electrical spikes that can damage sensitive electronics like computers and routers.
• Short Circuit Protection
  If there is a wiring fault or short circuit, the UPS immediately cuts off power output to prevent damage to both the UPS and connected devices.
• Cold Start Function
  The UPS can be turned on even when there is no mains power. This means you can still use battery power directly in emergency situations.
• Auto Charging System
  Even when the UPS is switched off, it continues charging the battery whenever mains power is available, ensuring it is always ready for backup use.
• Intelligent Battery Management
  The UPS controls charging and discharging cycles carefully to improve battery lifespan and maintain consistent performance over time.
