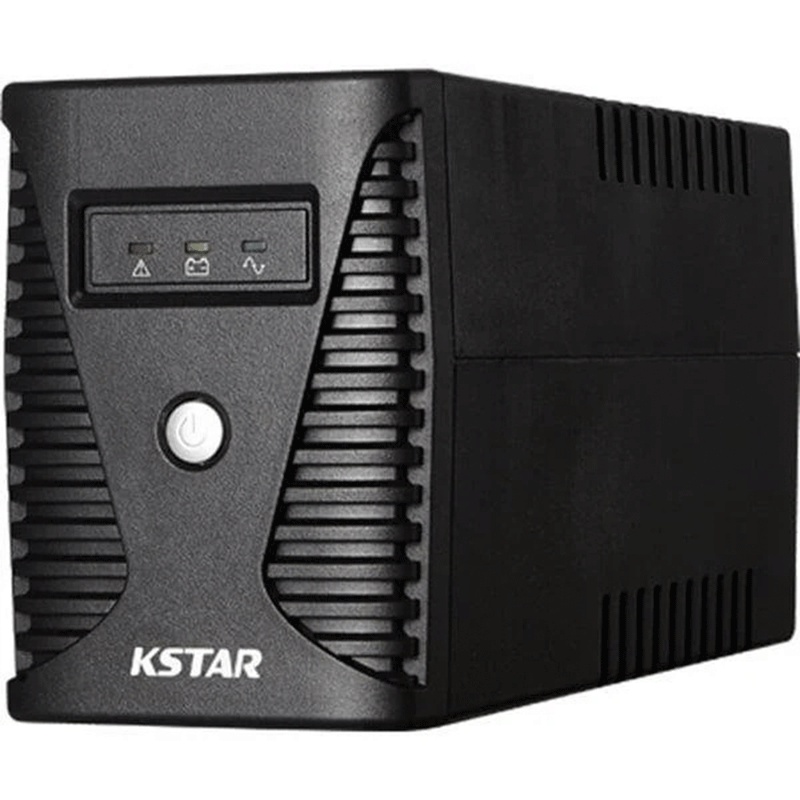

KSTAR UA60 600VA / 360W Line-Interactive UPS with AVR

Line-interactive UPS, 600VA/360W, 240v/50HzLCD+2*Uni-Sockets, Plastic case, cable With 1pcs 12V/7Ah battery(2kg) Without: Communication interface, output cables

Description

The KSTAR UA60 is a compact line-interactive uninterruptible power supply (UPS) designed to provide reliable backup power and protection for small electronic devices such as computers, routers, POS systems, and CCTV equipment. With a capacity of 600VA / 360W, it ensures that connected devices continue operating during power outages or voltage fluctuations.

This UPS uses Automatic Voltage Regulation (AVR) to stabilize input voltage, protecting equipment from surges, spikes, and unstable electricity. In the event of a power failure, it automatically switches to battery mode within milliseconds, allowing devices to remain powered without interruption.

The UA60 features LED indicators for AC mode, battery mode, load level, and battery status, making it easy to monitor the system’s operation. It also includes safety protections such as overload and overcharge protection, ensuring long-term reliability and safe battery operation.

Its lightweight and compact tower design makes it ideal for home offices, small businesses, and workstation environments where dependable power backup is required.

KSTAR UA60 600VA Line-Interactive UPS – Specifications

General

• Brand: KSTAR

• Model: UA60 (KS-UA60)

• UPS Type: Line-Interactive

• Capacity: 600VA / 360W

Input

• Nominal Input Voltage: 220 / 230 / 240 VAC

• Operating Voltage Range: 162 – 290 VAC

• Frequency Range: 50/60 Hz (±10%)

Output

• Output Voltage: 230 VAC

• Output Waveform: Simulated sine wave (battery mode)

• Transfer Time: 2 – 6 ms typical, 10 ms max

• Frequency Range: 50/60 Hz ±1 Hz

Battery

• Battery Type: 12V / 7Ah × 1

• Recharge Time: 6 – 8 hours to 90% capacity

Protection & Features

• Automatic Voltage Regulation (AVR)

• Overload protection

• Overcharge protection

• Cold start function

• Auto restart when AC power returns

• Self-diagnostic function

• Generator compatible

Indicators & Alarms

• LED indicators for AC mode and battery mode

• Audible alarms for battery mode, low battery, overload, and faults

Physical

• Dimensions: 101 × 298 × 142 mm

• Weight: ≈ 4.25 kg

• Noise Level: ≤ 40 dB

Operating Environment

• Temperature: 0°C – 40°C

• Humidity: 0 – 95% (non-condensing)

KSTAR UA60 600VA Line-Interactive UPS – Key Features

1. Reliable 600VA / 360W Power Backup
The UPS provides a 600VA / 360W power capacity, ensuring essential devices such as desktop computers, routers, POS machines, and small office electronics remain powered during unexpected outages.

2. Line-Interactive UPS Technology
The UA60 uses line-interactive technology, which continuously monitors incoming power and automatically stabilizes voltage, protecting connected equipment from unstable electricity.

3. Automatic Voltage Regulation (AVR)
Built-in AVR automatically corrects low and high voltage fluctuations without switching to battery power, extending battery life while keeping devices protected from power instability.

4. Fast Transfer Time
When a power failure occurs, the UPS switches to battery power within milliseconds, ensuring connected devices continue operating without interruption or data loss.

5. Simulated Sine Wave Output
The UPS produces a simulated sine wave output during battery mode, making it suitable for standard office electronics such as computers, networking equipment, and CCTV systems.

6. Multiple Protection Features
It includes overload protection, short-circuit protection, and overcharge protection, ensuring both the UPS and connected devices remain safe from electrical damage.

7. LED Status Indicators
The front panel features LED indicators that clearly display power status, battery mode, and system alerts, allowing users to easily monitor the UPS operation.

8. Audible Alarm Notifications
The UPS provides audible alarms for low battery, overload, and power failure, alerting users immediately so they can safely save work or shut down equipment.

9. Compact and Space-Saving Design
Its lightweight and compact tower design makes it easy to place on a desk or under a workstation, making it ideal for home offices and small business environments.

10. Automatic Restart Function
When utility power returns after an outage, the UPS automatically restarts and resumes normal operation, ensuring connected equipment powers back on smoothly.

KSTAR UA60 600VA Line-Interactive UPS – Applications

1. Desktop Computers and Workstations
The UA60 provides backup power for desktop PCs and monitors, allowing users to save work and safely shut down systems during power outages.

2. Networking Devices
It supports routers, modems, and small network switches, ensuring continuous internet connectivity during short power interruptions.

3. Point of Sale (POS) Systems
The UPS helps keep POS machines and receipt printers running, preventing transaction interruptions in retail stores, supermarkets, and small businesses.

4. CCTV and Security Systems
The UA60 can power CCTV cameras, DVRs, and security systems, ensuring surveillance continues even when electricity fails.

5. Home Office Equipment
Ideal for home offices, the UPS protects devices such as computers, Wi-Fi routers, and small electronics from power outages and voltage fluctuations.

6. Small Business Electronics
It can support small office equipment like barcode scanners, networking devices, and communication equipment, helping maintain productivity during unstable power conditions.

7. Telecommunication Devices
The UPS ensures VoIP phones and communication systems remain operational during short power cuts.

Why Choose the KSTAR UA60 600VA UPS

1. Reliable Backup Power for Essential Devices
The UA60 provides 600VA / 360W power capacity, ensuring devices like computers, routers, POS systems, and CCTV equipment remain operational during power outages.

2. Automatic Voltage Regulation (AVR)
It includes AVR boost and buck technology that automatically stabilizes low or high input voltage, protecting connected equipment from unstable electricity without constantly using battery power.

3. Fast Switching During Power Failure
The UPS switches from utility power to battery power in 2–6 milliseconds, preventing interruptions, system crashes, or data loss.

4. Strong Protection for Equipment
The UA60 includes overload protection, overcharge protection, and surge protection, safeguarding both the UPS and connected devices from electrical damage.

5. Compact and Space-Saving Design
Its lightweight and compact tower design allows it to fit easily on desks or under workstations, making it suitable for home offices and small business environments.

6. Easy Monitoring with LED Indicators
The UPS has LED indicators showing AC mode, battery mode, load level, and battery status, making it easy for users to monitor power conditions.

7. Cold Start Function
The cold start feature allows the UPS to power on directly from the battery even when there is no utility power available.

8. Automatic Restart and Fast Battery Charging
When power returns, the UPS automatically restarts and recharges the battery quickly, ensuring it is ready for the next power interruption.

9. Designed for Small Offices and Home Use
The UA60 is specifically designed for PCs, networking equipment, and small office electronics, making it an affordable and reliable power protection solution.

10. Durable and Low-Maintenance Operation
With built-in self-diagnostics and intelligent battery management, the UPS provides long-term reliability with minimal maintenance requirements
