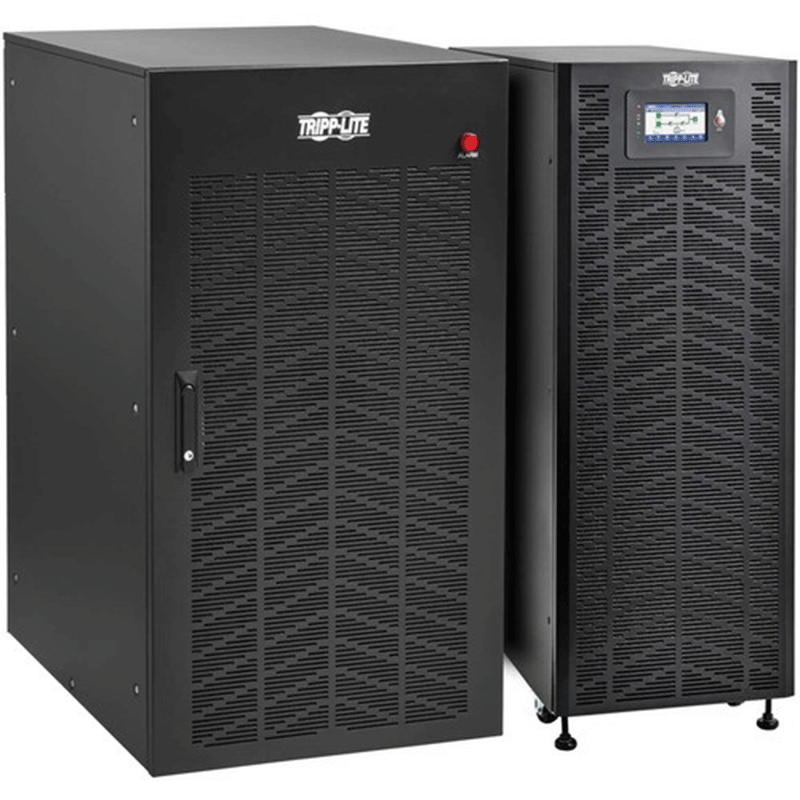

60kVA Transformer-Based Online UPS

60kVA Transformer-Based Online UPS, 3-Phase Input/Output, PF 0.9, Parallel Redundant up to 6 Units, RS232/RS485, No Built-in Battery

Product Description

The 60kVA Transformer-Based Online UPS is a high-performance uninterruptible power supply designed to deliver reliable and stable power for critical infrastructure. With a power capacity of 60kVA/54kW and power factor of 0.9, this UPS ensures efficient power delivery for demanding applications such as data centers, industrial equipment, and IT networks.

Featuring true 3-phase input and 3-phase output (3:3 configuration), the system provides stable voltage and frequency regulation even in unstable power environments. Its transformer-based design enhances electrical isolation, durability, and protection against electrical disturbances.

The UPS supports parallel redundancy of up to 6 units, allowing scalable power capacity and improved system reliability for mission-critical environments. Since it is supplied without built-in batteries, it offers flexibility to connect external battery banks based on required backup time.

Advanced communication interfaces including RS232 and RS485 ports enable seamless integration with monitoring and management systems. The Emergency Power Off (EPO) function allows immediate shutdown during emergencies for enhanced safety.

Specifications (Bullet Form)

• Capacity: 60kVA / 54kW

• Power Factor: 0.9

• UPS Type: Transformer-Based Online UPS

• Input Phase: 3 Phase (3Ph + PE)

• Output Phase: 3 Phase (3Ph + N + PE)

• Parallel Capability: Up to 6 units for redundancy or capacity expansion

Input

• Voltage: 380 / 400 / 415 Vac

• Voltage Range: –25% to +20%

• Frequency: 50/60 Hz (±5%)

• Input Configuration: 3Ph + PE

Output

• Voltage: 380 / 400 / 415 Vac (±1%)

• Frequency: 50/60 Hz (±0.05%)

• Output Configuration: 3Ph + N + PE

Communication & Control

• RS232 Communication Port

• RS485 Communication Port

• Emergency Power Off (EPO)

Not Included

• Built-in batteries

• Dry Contact Card

• SNMP Card (optional)

• Parallel Cable

Key Features

• High Power CapacityProvides 60kVA/54kW output, making it suitable for large-scale IT, industrial, and commercial power protection applications.
• Transformer-Based IsolationThe integrated transformer enhances electrical isolation, reliability, and protection against voltage spikes and electrical noise.
• Parallel Redundancy SupportSupports up to 6 UPS units in parallel, enabling scalable power systems and redundancy for critical operations.
• Precise Output RegulationMaintains ±1% voltage accuracy and ±0.05% frequency stability, ensuring safe operation for sensitive equipment.
• Wide Input Voltage RangeHandles –25% to +20% voltage fluctuations, minimizing battery usage and improving efficiency in unstable power environments.
• Flexible Battery ConfigurationWithout built-in batteries, users can connect external battery banks to achieve the desired backup runtime.
• Advanced Communication PortsRS232 and RS485 interfaces allow remote monitoring, system integration, and efficient UPS management.
• Emergency Power Off (EPO)Provides instant shutdown capability during emergencies to protect equipment and personnel.

Applications

• Data Centers

• Industrial Automation Systems

• Medical Equipment

• Banking & Financial Institutions

• Telecommunication Infrastructure

• Server Rooms & IT Networks

• Manufacturing Facilities

Why Choose This UPS

• Reliable transformer-based design for industrial environments

• High power capacity for critical systems

• Parallel redundancy up to 6 units for maximum reliability

• Flexible external battery support for customized backup time

• Stable and precise output power for sensitive equipment

• Advanced monitoring through RS232 & RS485
