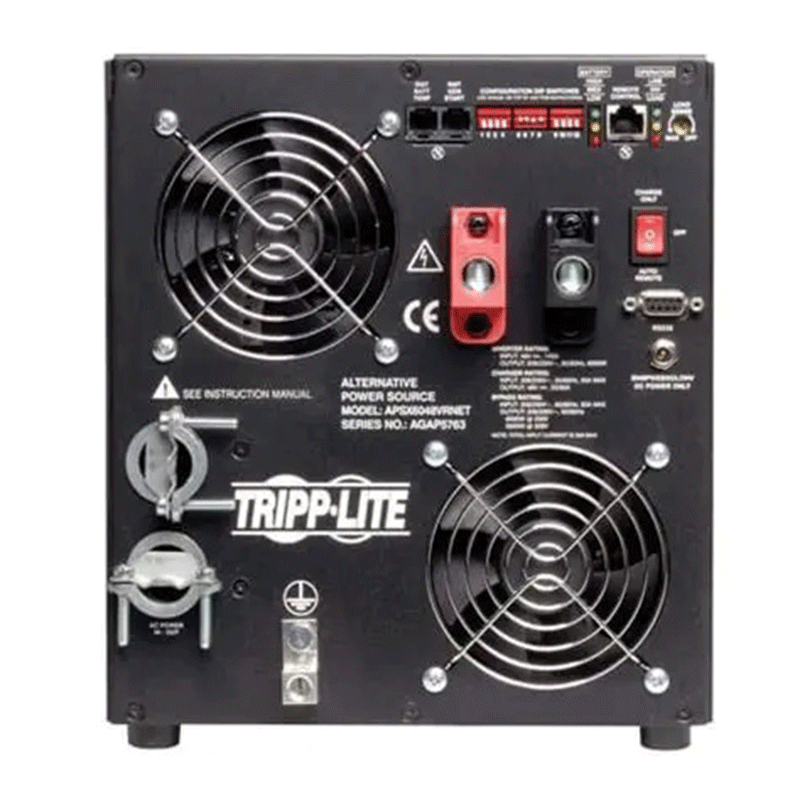

6000W APS X Series 48VDC 208/230V Pure Sine Wave Inverter/Charger with AVR, Hardwired, SNMP

6000W APS X Series 48VDC 208/230V Inverter/Charger with Pure Sine-Wave Output, AVR, Hardwired, IP Capable with SNMPWEBSOLOHV (Optional to purchase) – 3-Stage 23/90A Selectable Battery Charger

Description Overview

This 6000W APS X Series inverter/charger converts 48V DC battery power into stable 208/230V AC pure sine-wave output for sensitive electronics and heavy loads. It features built-in Automatic Voltage Regulation (AVR), auto transfer switching, and a selectable 3-stage battery charger. With optional SNMPWEBSOLOHV network card support, it enables remote monitoring and management over IP, making it suitable for mission-critical power backup systems.

Key Features

• 6000W continuous output power, up to 12000W peak surge capability
• Pure sine-wave output for sensitive electronics and motors
• 48VDC battery input with 208/230V AC output support
• Built-in Automatic Voltage Regulation (AVR) corrects brownouts/overvoltage without battery use
• Automatic transfer switching (10–20 ms typical) during power failures
• 3-Stage selectable 23/90A battery charger for wet/gel batteries
• Optional SNMPWEBSOLOHV card for remote monitoring via network
• Hardwired AC input/output connections for permanent installations
• DIP-switch configurable voltage, frequency, and charging profiles

Specifications

• Continuous Output Power: 6000W
• Peak Output Power: 12000W
• DC Input Voltage: 48VDC
• AC Output Voltage: 208/230VAC
• Waveform: Pure sine wave
• Battery Charger: 3-Stage selectable 23/90A
• Transfer Time: 10–20 ms (selectable)
• Cooling: Dual multi-speed fans
• Form Factor: Hardwired metal enclosure
• Frequency: 50/60 Hz selectable

Applications

• Data centers & server rooms
• Telecom systems
• Industrial control equipment
• Solar & off-grid power systems
• Security & surveillance systems
• Network infrastructure backup
• Heavy-duty home or office backup power

Why Choose This Model

• High 6000W capacity for large loads
• Clean sine-wave power for sensitive electronics
• Built-in AVR reduces battery usage
• Network monitoring capability (optional SNMP card)
• Strong surge capability for motor startup
• Flexible 3-stage intelligent battery charging
• Reliable automatic transfer switching
