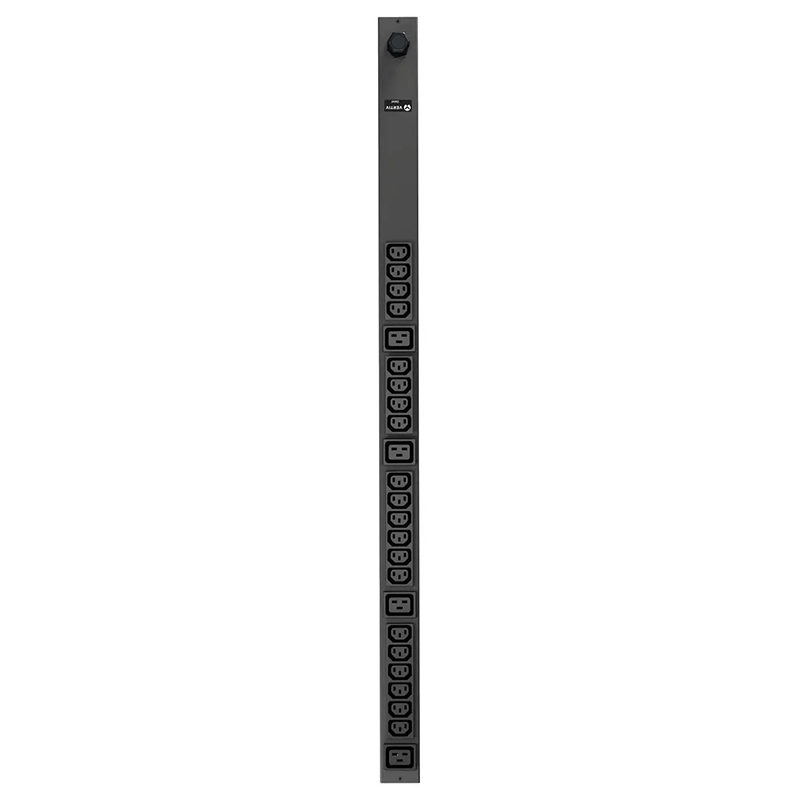

Vertiv Geist rPDU, basic, 0U, input IEC60309 230V 16A, outputs [20]C13 | [4]C19 power distribution unit [PDU] 24 AC outlet[s] Black
Description
The Vertiv Geist VP7551 Rack PDU is a reliable and efficient power distribution unit designed for modern data centers, server rooms, and network racks. Built to deliver stable power to multiple IT devices, this PDU ensures organized and dependable power management for mission-critical equipment such as servers, switches, storage systems, and networking hardware.
Designed with a vertical 0U rack-mount form factor, the VP7551 installs along the side of a rack cabinet without occupying valuable rack space. This allows organizations to maximize rack capacity while still ensuring efficient power distribution to connected devices.
The unit provides 24 output outlets (20 × IEC C13 and 4 × IEC C19), enabling IT administrators to connect a wide range of equipment from a single power source. With a 230V input and 16A capacity delivering up to 3.6 kW of power, it supports both standard IT devices and higher-power equipment commonly found in enterprise and data center environments.
Engineered for reliability, the PDU features a durable steel chassis and high-quality internal components, ensuring long-term performance even in demanding IT infrastructures. Each unit is individually tested during manufacturing to guarantee safe and dependable operation.
The 3-meter power cord with IEC 60309 plug provides a secure connection to the main power supply or UPS system, making the VP7551 an ideal solution for structured and efficient rack power management.
Key Specifications
| Specification | Details |
|---|---|
| PDU Type | Basic Rack Power Distribution Unit |
| Phase Type | Single-phase |
| Input Voltage | 230V AC |
| Maximum Input Current | 16A |
| Load Capacity | 3.6 kW (3600 VA) |
| Input Plug Type | IEC 60309 (2P+E), 16A, IP44 splash-proof |
| Number of Inputs | 1 |
| Frequency | 50/60 Hz |
| Total Outlets | 24 outlets |
| Outlet Types | 20 × IEC C13, 4 × IEC C19 |
| Maximum Output per C13 Bank | 10A per receptacle bank |
| Maximum Output per C19 Outlet | 16A |
| Mounting Type | Vertical rack mount (0U) |
| PDU Length / Height | 978 mm (39 inches) |
| Cable Length | 3 meters |
| Operating Temperature | 10°C to 45°C |
| Construction | Heavy-duty steel with black powder coat finish |
| Weight | Approx. 3.5 kg |
| Certifications | CE, RoHS, CB |
Key Features
-
High-Capacity Power Distribution
The PDU delivers up to 3.6 kW of power at 230V and 16A, enabling it to efficiently distribute electricity to multiple servers, networking devices, and other rack-mounted equipment in a data center environment. -
24 Output Outlets for Multiple Devices
It provides 24 outlets (20 × IEC C13 and 4 × IEC C19), allowing IT administrators to connect a wide range of equipment such as servers, storage systems, and network switches from a single power source. -
Vertical 0U Rack Mount Design
The 0U vertical mounting design allows the unit to be installed along the side of a rack cabinet without occupying any rack space, maximizing room for critical IT equipment. -
Industrial-Grade Construction
The PDU is built with a durable steel enclosure and high-quality components, ensuring reliable operation and long-term durability in demanding data center and network environments. -
Reliable Single Input Power Connection
It uses a 16A IEC 60309 input plug with a 3-meter power cord, providing a stable and secure power connection from the main supply or UPS system. -
Wide Compatibility with IT Equipment
The combination of IEC C13 and C19 outlets ensures compatibility with a wide variety of enterprise IT devices, including high-power servers and networking hardware. -
Individually Tested for Quality Assurance
Each unit undergoes individual electrical and performance testing during manufacturing, ensuring dependable performance and safety before deployment. -
Easy and Flexible Installation
The PDU includes tool-less mounting options and brackets, making installation simple and allowing it to fit easily into standard server racks and cabinets.
Applications
-
Data Centers
The PDU is widely used in data centers to distribute reliable power from a UPS or main power source to multiple servers, storage devices, and networking equipment within a rack. -
Server Rooms
In enterprise server rooms, the unit provides centralized power distribution, helping IT administrators manage and supply power efficiently to critical IT infrastructure. -
Network Cabinets
It is commonly installed in network racks to supply power to switches, routers, firewalls, and other communication equipment that require consistent and organized power connections. -
Telecommunications Infrastructure
Telecom operators use rack PDUs like this to provide stable power distribution to networking hardware used in communication systems and service delivery. -
Edge Computing Deployments
The PDU is ideal for edge computing environments where compact racks require reliable power distribution for servers and network devices operating close to users or remote locations. -
Enterprise IT Environments
Businesses and organizations deploy this PDU in IT cabinets to power essential equipment such as servers, storage systems, and backup devices that support daily operations. -
Colocation Facilities
Colocation providers use rack PDUs to distribute power efficiently to multiple customer devices installed within shared racks in a data center environment.
Why Choose the Vertiv Geist VP7551 Rack PDU
-
Efficient Power Distribution – The PDU allows multiple rack-mounted devices such as servers, switches, and storage systems to receive power from a single reliable source, improving power organization in IT racks.
-
High Outlet Density – With 24 outlets (20 × IEC C13 and 4 × IEC C19), it supports a wide variety of IT equipment, making it ideal for environments with multiple devices in one rack.
-
Space-Saving Design – Its vertical 0U mounting design installs along the side of the rack, preserving valuable rack units for servers and networking equipment.
-
Reliable Performance for Critical IT Systems – Built with high-quality components and individually tested, the unit ensures dependable power delivery for mission-critical infrastructure.
-
Strong and Durable Construction – The industrial-grade steel enclosure provides durability and long-term performance in demanding data center and enterprise environments.
-
Trusted Technology Provider – Manufactured by Vertiv, a globally recognized provider of critical digital infrastructure and power management solutions.
-
Easy Installation and Integration – The included mounting options and standard input plug make it simple to deploy in most server racks and network cabinets.
