Vertiv SNMP Cards

About the Product

Enables remote monitoring and management of Vertiv UPS systems over a network.
Supports SNMP protocols (v1, v2c, v3) for seamless integration with network management systems.
Provides real-time alerts and notifications for power events and system status.
Equipped with RJ-45 Ethernet connectivity for easy LAN integration.
Compatible with Vertiv UPS devices featuring IntelliSlot ports.
Ideal for data centers, server rooms, and enterprise IT environments requiring reliable power monitoring.

Categories: Power Backups, SNMP / Network Cards, UPS Accessories

Description
Reviews (0)

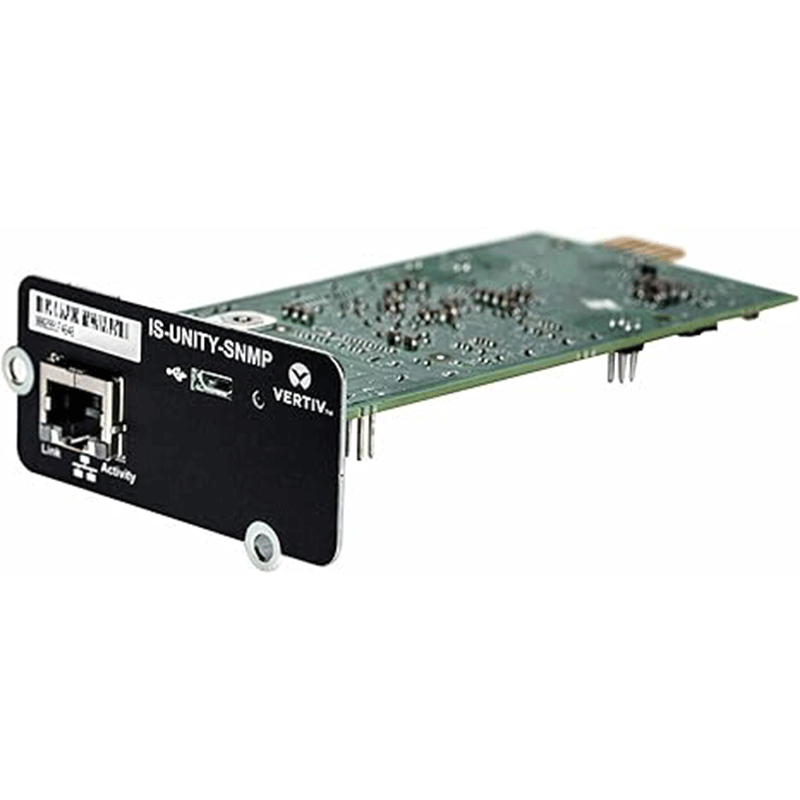

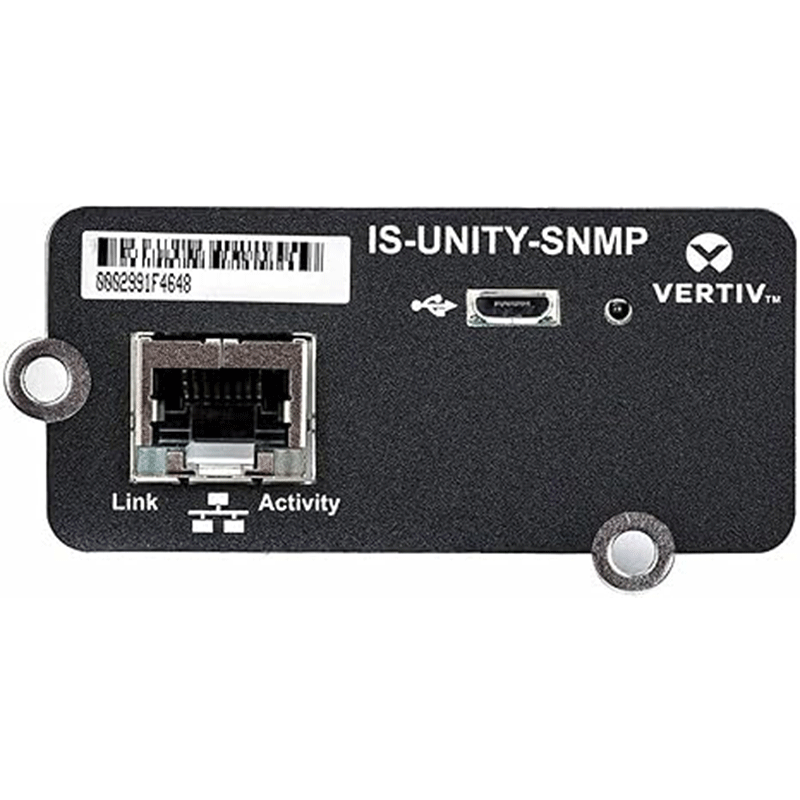

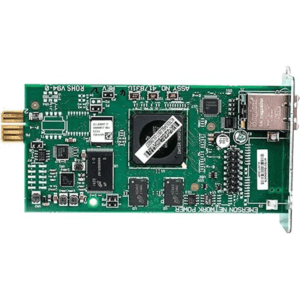

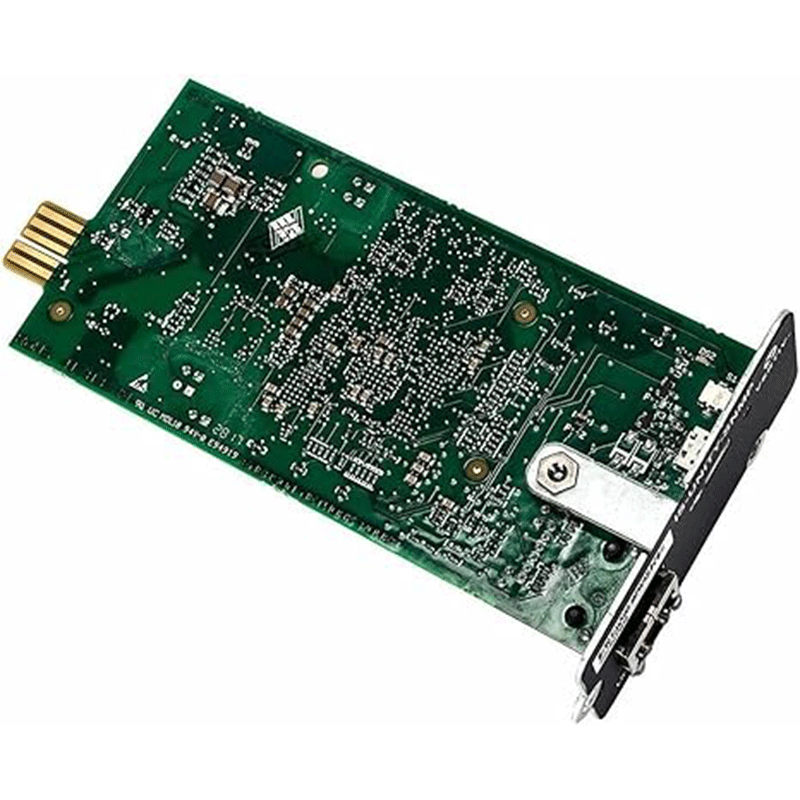

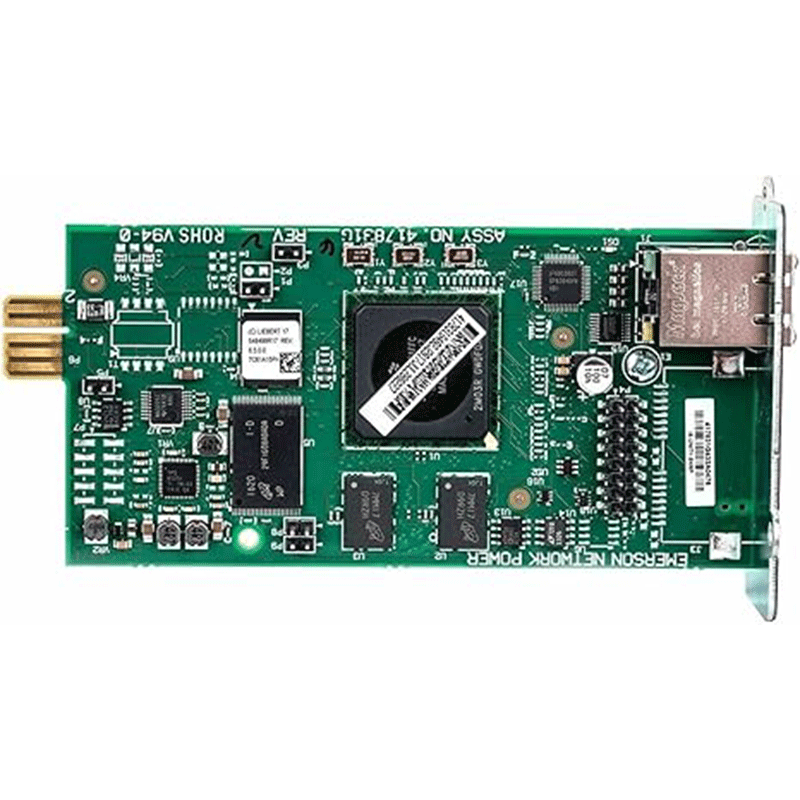

Vertiv Liebert IntelliSlot Unity – SNMP – Network Card | Remote Monitoring Adapter (IS-UNITY-SNMP)

Description Overview

Vertiv SNMP Cards are network management adapters designed to enable remote monitoring and control of power infrastructure devices such as UPS systems and power distribution units. These cards plug into compatible Vertiv equipment and connect to a network through an Ethernet interface, allowing administrators to monitor system performance, receive alerts, and manage power devices from anywhere using a web browser or network management software.

By supporting SNMP (Simple Network Management Protocol), Vertiv SNMP cards provide real-time information about UPS status, battery health, load levels, temperature, and power events. This helps IT teams detect potential issues early and maintain continuous uptime for critical systems. Many models also support secure protocols such as SNMP v3, HTTPS, and email notifications, ensuring safe and reliable remote management.

Vertiv SNMP cards are widely used in data centers, enterprise networks, server rooms, and telecommunications environments, where reliable power monitoring is essential. They simplify power management, improve operational visibility, and help organizations maintain business continuity by enabling proactive monitoring and fast response to power-related issues.

Vertiv SNMP Cards – Specifications
(Typical specifications based on Vertiv IntelliSlot Unity SNMP cards)

Product Type: Network Interface / SNMP Management Card
Connectivity Technology: Wired Ethernet
Host Interface: RJ-45 Ethernet port
Network Speed: Up to 100 Mbps data transfer rate
Ethernet Standard: 10/100Base-T(X) LAN support
Supported Protocols: SNMP v1, SNMP v2c, SNMP v3, HTTP, HTTPS, Modbus, BACnet (depending on model)
Form Factor: Internal plug-in module (IntelliSlot card)
Power Input: 7 – 12 VDC
Power Consumption: Approx. 3.6 W
Operating Temperature: 0°C to 40°C
Storage Temperature: –20°C to 60°C
Operating Humidity: 10% – 90% (non-condensing)
Dimensions:
- Width: 75.5 mm
- Height: 37 mm
- Depth: 15 mm
Weight: Approx. 200 g
Environmental Compliance: RoHS, REACH, WEEE certified

Compatibility:

Designed for Vertiv UPS systems, PDUs, and cooling equipment with an IntelliSlot port.

Vertiv SNMP Cards – Key Features

Remote Monitoring and Management
Vertiv SNMP cards enable administrators to monitor and manage UPS systems and other compatible power devices remotely through a network. This allows IT teams to check system status, battery health, and power conditions from anywhere using a web browser or network management software.
SNMP Protocol Support
The cards support SNMP v1, v2c, and v3 protocols, allowing seamless integration with existing network management systems. This ensures efficient monitoring of power infrastructure alongside other IT equipment within the same network environment.
Real-Time Alerts and Notifications
Vertiv SNMP cards provide instant notifications through email alerts or SNMP traps whenever power events occur, such as battery failure, overload, or power outages. This enables faster response to potential issues and helps prevent downtime.
Web-Based User Interface
The built-in web interface allows users to easily access device information, configure settings, and monitor system performance without the need for specialized software, making power management simple and convenient.
Secure Communication and Access
With support for secure protocols such as SNMP v3 and HTTPS, the cards ensure that communication between the device and the network is encrypted and protected, helping maintain the security of critical infrastructure.
Easy Installation with IntelliSlot Design
Vertiv SNMP cards are designed as plug-in modules that fit into IntelliSlot ports on compatible Vertiv UPS systems, making installation quick and straightforward without requiring complex setup.
Event Logging and Data Tracking
The cards record system events and operational data, allowing administrators to review historical performance, analyze power trends, and troubleshoot potential issues efficiently.

Common Vertiv SNMP Card Models

Some widely used models include:

Vertiv IS-UNITY-SNMP – IntelliSlot Unity SNMP Network Card
Vertiv IS-UNITY-DP – Dual-protocol card (SNMP, BACnet, Modbus)
Vertiv RDU101 – Remote device monitoring card
Vertiv IS-WEBRT3N – SNMP card for Liebert PSI UPS

These cards are designed for Vertiv Liebert UPS systems, cooling systems, and power distribution equipment.

Applications

Vertiv SNMP cards are commonly used in:

Data centers
Server rooms
Enterprise IT networks
Telecommunication infrastructure
Industrial power monitoring

They help ensure continuous monitoring and proactive maintenance of power systems.

Why Choose Vertiv SNMP Cards

Remote Power Monitoring
Vertiv SNMP cards allow IT administrators to monitor UPS systems and other compatible power devices remotely over a network. This ensures quick access to system status, battery condition, and power events without needing to be physically present.
Improved System Reliability
By providing real-time monitoring and alerts, the SNMP card helps detect potential power issues early. This proactive monitoring reduces downtime and helps maintain continuous operation of critical equipment.
Seamless Network Integration
With support for standard SNMP protocols, Vertiv SNMP cards integrate easily with existing network management systems. This enables centralized monitoring of power infrastructure along with other IT devices.
Real-Time Alerts and Notifications
The card sends instant notifications through SNMP traps or email alerts whenever there is a power failure, overload, or battery issue, allowing faster response and troubleshooting.
Enhanced Security
Support for secure communication protocols such as SNMP v3 and HTTPS ensures safe and encrypted data transmission, protecting sensitive network management information.
Easy Installation and Setup
Designed with a plug-and-play IntelliSlot interface, Vertiv SNMP cards can be installed quickly in compatible UPS systems, making deployment simple and efficient.
Better Power Infrastructure Management
With detailed event logs and performance monitoring, organizations can track power usage, analyze trends, and make informed decisions to optimize their power infrastructure.
