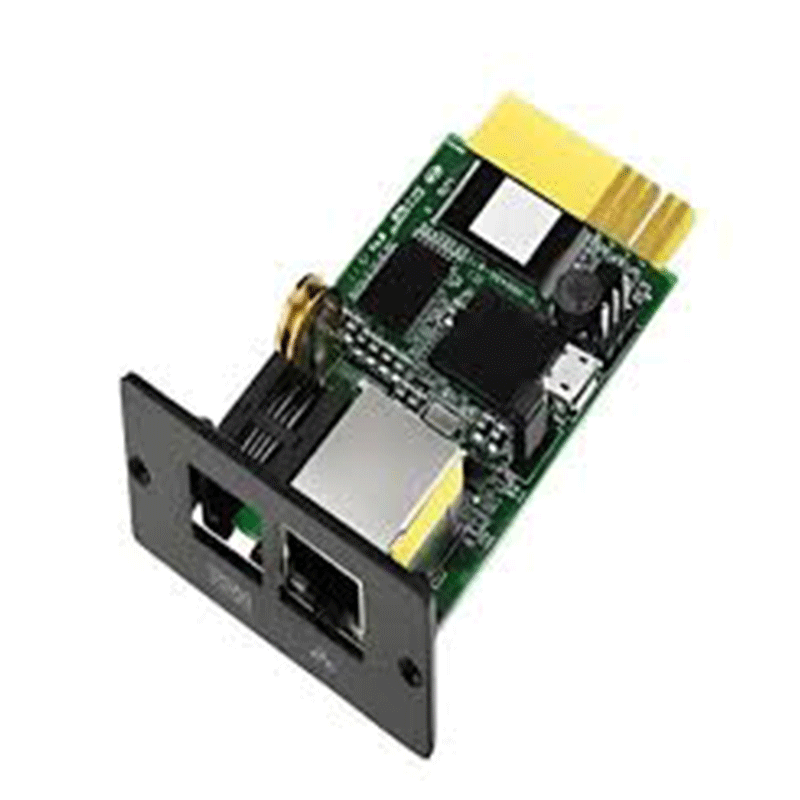

Shield N1 net connect 1

Shield N1 Net Connect 1 is a single-phase remote monitoring SNMP card designed for Shield UPS systems. It enables network-based monitoring and management of your UPS through a web browser or network management software.

Shield N1 Net Connect 1 – Specifications

• UPS Compatibility: Designed for compatible Shield single-phase UPS models

• Communication Protocol: SNMP (Simple Network Management Protocol)

• Network Interface: RJ45 Ethernet port (10/100 Mbps auto-sensing)

• Management Access: Web browser-based interface (HTTP)

• Remote Monitoring: Real-time UPS status, input/output voltage, load level, battery status

• Alert Notifications: Email alerts and SNMP traps

• Remote Shutdown Support: Compatible with shutdown software for servers and workstations

• User Authentication: Password-protected access

• Installation Type: Internal plug-in communication card

• Operating Environment: Designed for standard indoor UPS operating conditions

Shield N1 Net Connect 1 – Key Features

• SNMP Communication Support: The card uses SNMP protocol to allow seamless integration with network management systems for centralized UPS monitoring.

• Web-Based Management Interface: It provides an easy-to-use web browser interface that allows users to monitor and manage the UPS remotely without installing special software.

• Real-Time UPS Monitoring: The system displays live data such as input/output voltage, battery status, load percentage, and operating mode for accurate power tracking.

• Remote Shutdown Capability: It enables safe and automatic shutdown of connected servers and equipment during extended power outages to prevent data loss.

• Email & SNMP Trap Notifications: The card sends instant alerts and notifications in case of power failures, low battery, overload, or system faults for proactive response.

• LAN & Internet Accessibility: Users can access and monitor the UPS over a local network or remotely via the internet for improved operational flexibility.

• Secure Access Control: It supports password-protected login to ensure only authorized personnel can access and manage the UPS settings.

• Easy Installation & Integration: The plug-in design allows quick installation into compatible Shield single-phase UPS models without complex configuration.

Shield N1 Net Connect 1 – Applications

• Server Rooms: Ideal for monitoring UPS systems supporting servers to ensure continuous uptime and safe shutdown during power interruptions.

• Data Centers: Enables centralized remote monitoring of UPS units to improve power management and reduce unexpected downtime.

• Corporate Offices: Suitable for offices that require reliable power monitoring for computers, networking equipment, and communication systems.

• Telecommunication Sites: Helps telecom operators remotely monitor power backup systems in base stations and communication hubs.

• IT & Networking Environments: Supports network administrators in tracking UPS performance for switches, routers, and critical infrastructure devices.

• Banking & Financial Institutions: Ensures continuous monitoring of UPS systems protecting sensitive financial and transaction systems.

• Healthcare Facilities: Useful in monitoring power backup systems supporting medical equipment and IT systems in clinics and hospitals.

Why Choose Shield N1 Net Connect 1

• Enhanced Network Visibility
  It provides real-time visibility into UPS status and performance over your network, helping you monitor power conditions without physical access.

• Proactive Alerting
  With instant email notifications and SNMP traps for power events like outages, low battery, and faults, you can respond quickly before issues escalate.

• Improved Uptime and Protection
  By enabling remote shutdown of connected equipment during prolonged power failures, it helps safeguard data and prevent unexpected downtime.

• Easy Integration
  The SNMP-based communication and web interface make it simple to integrate with existing network management systems and infrastructure.

• Remote Accessibility
  You can monitor and manage the UPS from anywhere over LAN or the internet, giving flexibility and reducing the need for onsite visits.

• Secure and User-Friendly
  Password-protected access ensures only authorized users can view or configure settings, while the intuitive web interface simplifies management.

• Cost-Effective Power Management
  It enhances the value of your UPS by adding remote management without requiring expensive proprietary software or complex add-ons.
