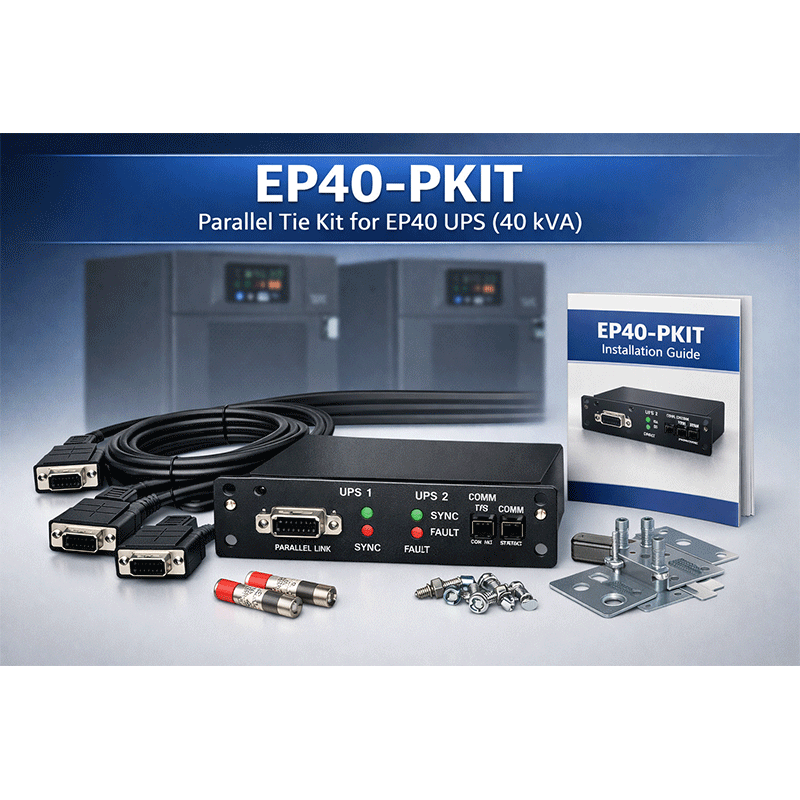

Parallel Tie Kit For 40 Kva UPS For EP40

Description

The EP40-PKIT is a dedicated parallel tie kit designed to link two EP40 UPS units, allowing them to operate together seamlessly. It provides redundancy, improves load sharing, and ensures continuous power supply during maintenance or failure of one unit. Perfect for businesses needing enhanced reliability for critical systems.

EP40-PKIT Specifications

• Compatible UPS Models: EP40 series (40 kVA)

• Maximum Parallel Units: 2 UPS units

• Communication Interface: High-speed parallel link

• Installation Type: Internal mounting within UPS cabinet

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 70°C (-4°F to 158°F)

• Humidity Range: 0–95% non-condensing

• Dimensions: Compact module (exact size per UPS manual)

• Weight: Lightweight for easy installation

• Safety & Compliance: Built-in protection for fault tolerance

EP40-PKIT Features

• Parallel Operation: Enables seamless parallel operation of two EP40 UPS units for increased capacity and redundancy.

• Enhanced Reliability: Improves system availability by allowing load sharing and fault tolerance.

• Fast Communication: High-speed data link ensures synchronized operation between UPS units.

• Compact Design: Small footprint for easy installation within UPS cabinets.

• Plug-and-Play: Simple connection setup minimizes installation time and complexity.

• Compatibility: Fully compatible with EP40 series UPS models.

• Durable Construction: Built to withstand industrial environments for long-term reliability.

• Maintenance-Friendly: Allows one UPS to be serviced without interrupting power to critical loads.

Core Purpose

• Enables parallel operation of two EP40 UPS units

• Increases system capacity and load-sharing capability

• Provides redundancy for uninterrupted power supply

• Enhances overall reliability and availability of critical systems

• Allows maintenance on one UPS without disrupting connected loads

How It Works

The EP40-PKIT connects two EP40 UPS units via a dedicated parallel communication link.

1. • It synchronizes the output voltage and frequency of both UPS units.

   • Load is shared evenly between the connected UPS units to prevent overloading.

   • If one UPS fails or is taken offline for maintenance, the other continues supplying power without interruption.

   • Ensures seamless redundancy, improving system reliability for critical loads.

   • High-speed communication allows real-time monitoring and coordination between units.

Why You Would Use One

A parallel tie kit is used when you want:

✅ Increased total power capacity (e.g., 2 × 40 kVA = 80 kVA)
✅ Redundancy so load stays powered even if one UPS fails
✅ Hot‑swappable maintenance (with bypass panel)
✅ Scalability — add more UPS units as demand grows

Important Notes

🔹 A parallel tie kit must be matched to the specific UPS model and brand — they are not universal.
🔹 Some UPS models require additional internal cards or firmware options to enable paralleling.
🔹 Simply tying outputs with cables without proper control can damage equipment.
