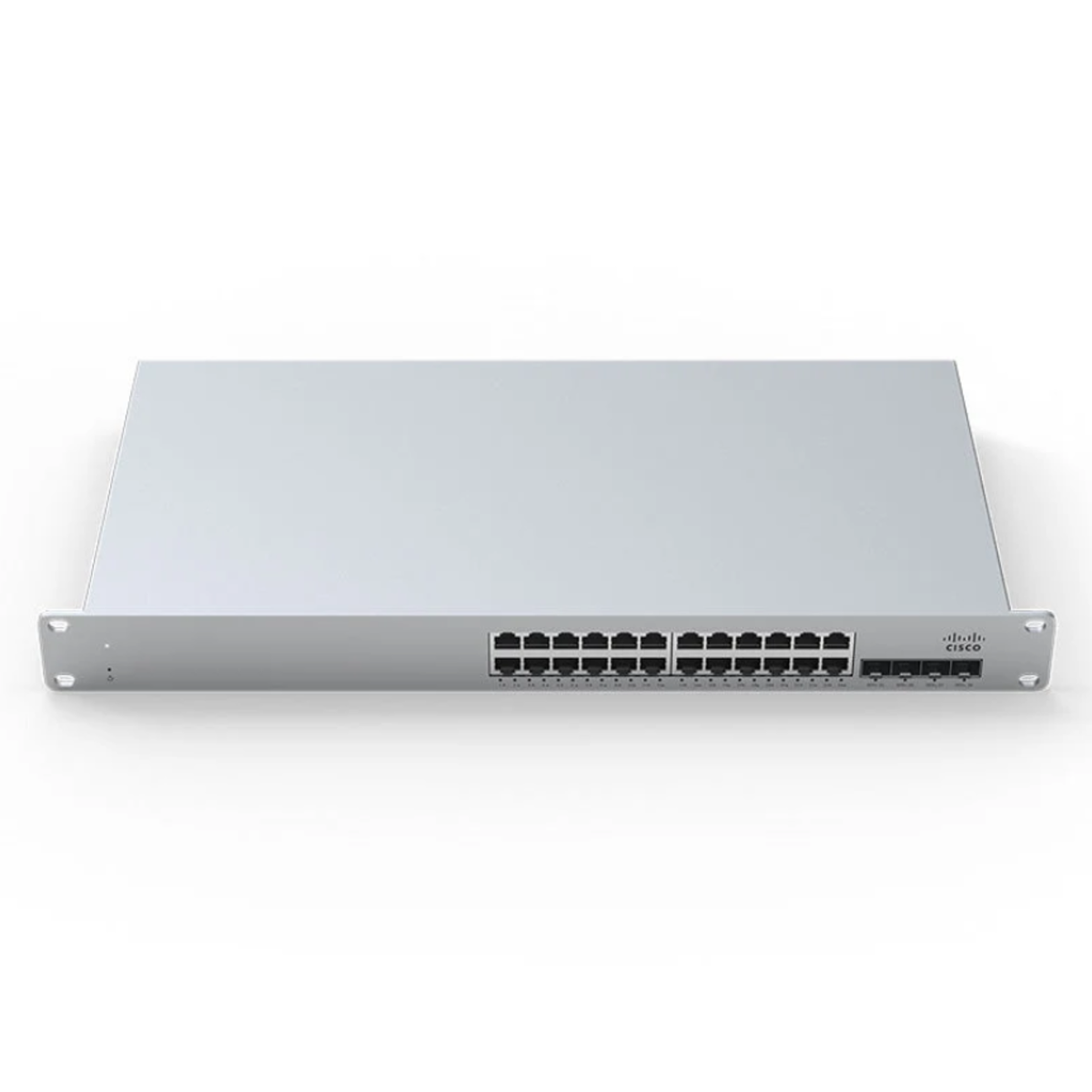

Cisco Meraki MS225 Series Stackable Cloud-Managed Layer 2/3 Switches with 10G Uplinks

Device Type: Stackable, Cloud-Managed Layer 2/3 Access Switch.
Management Interface: 100% remote configuration and monitoring via the Meraki Web Dashboard.
Uplink Bandwidth: Equipped with 4x dedicated 10G SFP+ fiber uplink slots for high-speed core stacking.
Physical Stacking: Dedicated rear ports supporting up to 80 Gbps of physical stacking bandwidth.
Routing Architecture: Supports wire-rate Layer 3 static routing for efficient local traffic handling.
Port Density: Available in standard 24-port or 48-port Gigabit configurations. [1, 2, 3, 4, 5]

Description
Reviews (0)

The Cisco Meraki MS225 series provides high-performance, stackable access switching designed for midmarket networks, growing corporate branches, and high-density school campuses. By combining the zero-touch management architecture of the Meraki cloud with blazing-fast 10G SFP+ uplinks, the MS225 series eliminates local network bottlenecks and simplifies hardware expansion.

With its dedicated physical stacking architecture, network administrators can easily link up to 8 individual MS225 switches into a single logical entity. This delivers high availability and lets you manage up to 384 ports through a single screen. Built-in Layer 3 static routing allows the switch to process internal inter-VLAN data traffic right at the edge of your network, freeing up critical processing power on your core internet firewalls.

Technical Specifications

Uplink Speed: 4x 10G SFP+ slots (backward compatible with 1G SFP modules).
Stacking Limit: Stack up to 8 physical hardware units together.
Switching Capacity: 128 Gbps (on 24-port models) up to 176 Gbps (on 48-port models).
Layer 3 Routing: Built-in hardware support for up to 16 local static routes.
Chassis Enclosure: Standard 1U heavy-duty rack-mountable metal build.
Warranty Program: Protected by Meraki’s comprehensive Lifetime Hardware Warranty with advanced replacement.
