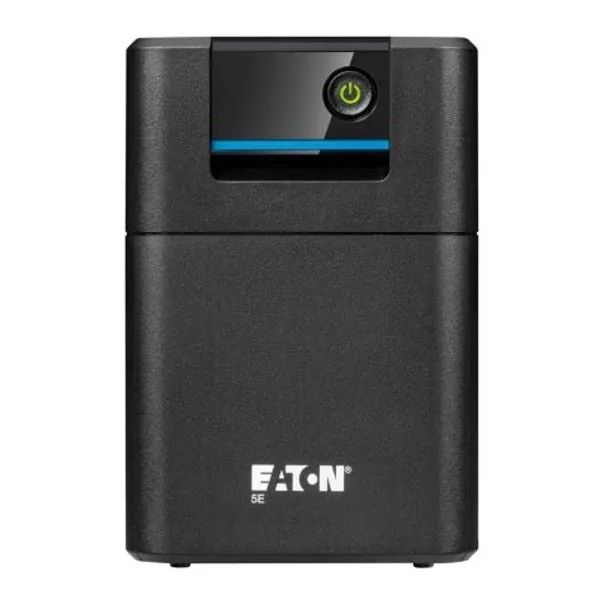

EATON UPS 1200VA USB Gen2 230V BS Socket 660 W (5E1200)

Description Overview

The Eaton 5E1200 UPS is a line-interactive uninterruptible power supply (UPS) designed to provide reliable backup power and voltage protection for home and small office equipment. It delivers 1200VA / 660W capacity, making it suitable for computers, networking devices, and other sensitive electronics that need stable power.

It features Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery, helping extend battery life and ensure consistent output. In case of a full power outage, it instantly switches to battery mode to keep devices running long enough for safe shutdown or continued operation.

This model includes a USB communication port that allows connection to a computer for monitoring and automatic shutdown using Eaton software. It also uses British Standard (BS) sockets, making it compatible with common plugs used in Kenya and similar regions.

Overall, the Eaton 5E1200 is built for basic to mid-level power backup needs, offering protection against blackouts, surges, and unstable voltage conditions in a compact tower design.

Specifications

• Model: Eaton 5E1200 (Gen2)
• Capacity: 1200VA / 660W
• Topology: Line-interactive UPS
• Input Voltage: 230V (nominal, supports 140–300V range)
• Output Voltage: 230V AC (regulated)
• Frequency: 50/60 Hz (auto sensing)
• Output Sockets: British Standard (BS) sockets
• Number of Outlets: Typically 4 BS outlets (region dependent)
• Battery Type: Sealed lead-acid battery (internal)
• Battery Rating: 12V / 7Ah (x2 batteries in system)
• Backup Runtime: Depends on load (higher load = shorter backup time)
• Transfer Time: Fast switchover (typically 2–6 ms)
• AVR (Automatic Voltage Regulation): Yes (boosts and reduces voltage without using battery)
• USB Port: Yes (HID-compliant for monitoring and shutdown control)
• Software Support: Eaton UPS Companion software
• Surge Protection: Yes (protects against spikes and surges)
• Cold Start Function: Yes (can power on without mains electricity)
• Efficiency: Up to ~95% at full load
• Operating Temperature: 0°C to 40°C
• Noise Level: Low noise (fanless or minimal fan operation under normal load)
• Form Factor: Tower design (compact desktop UPS)
• Weight: Approx. 8.1 kg
• Dimensions: 330 × 180 × 133 mm

Features

• 1200VA / 660W Power Capacity: This UPS provides enough power to support a desktop computer, router, or CCTV system, allowing them to continue running or shut down safely during a power outage.
• Line-Interactive Technology: It automatically stabilizes voltage fluctuations without always switching to battery mode, ensuring more efficient operation and longer battery life.
• Automatic Voltage Regulation (AVR): The AVR corrects low and high voltage conditions in real time, protecting connected devices from damage caused by unstable electricity supply.
• Fast Transfer Time: When a blackout occurs, the UPS switches to battery power within milliseconds, preventing sudden shutdowns or data loss.
• USB Communication Port: The built-in USB interface allows connection to a computer so users can monitor power status and set automatic shutdown features using software.

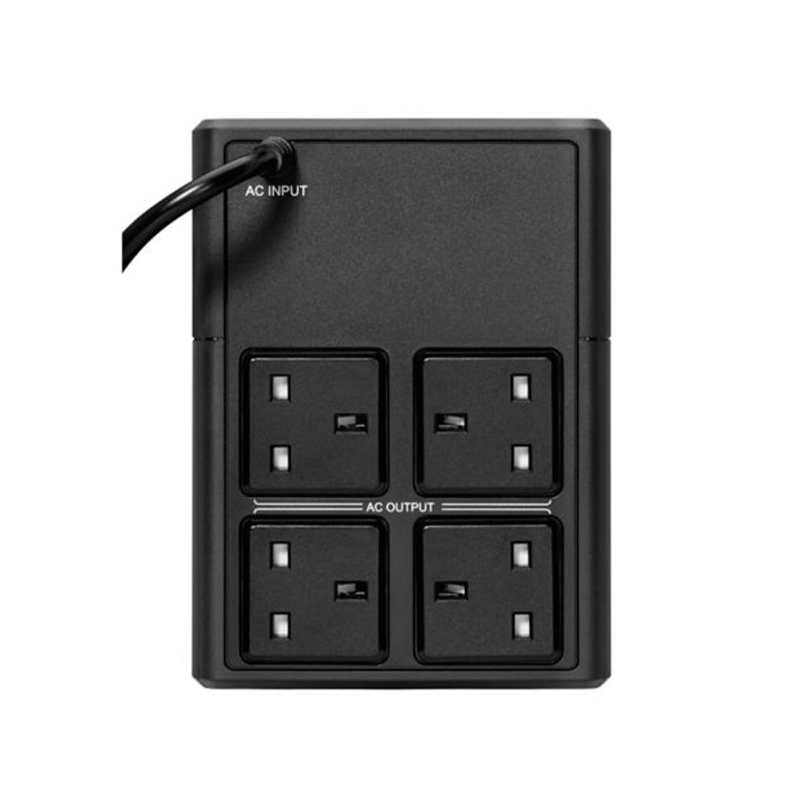

• British Standard (BS) Sockets: It comes with BS-type outlets, making it compatible with common plugs used in Kenya and other regions that follow the UK socket standard.
• Sealed Lead-Acid Battery: The internal maintenance-free battery provides reliable backup power and is designed for long-term use without frequent servicing.
• Cold Start Function: This feature allows the UPS to be turned on and supply power to devices even when there is no mains electricity available.
• Surge and Spike Protection: It protects connected equipment from sudden electrical surges and spikes that could otherwise damage sensitive electronics.

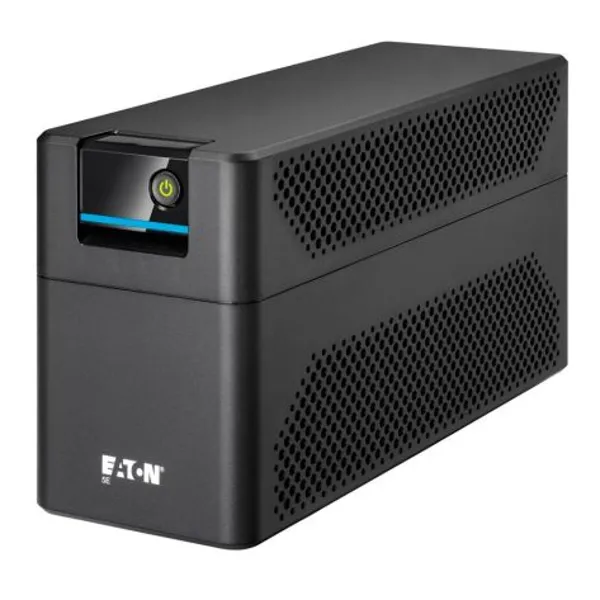

• Compact Tower Design: The UPS has a space-saving vertical design that fits easily under desks or in small office environments without taking up much space.
• Energy Efficient Operation: It is designed to operate with high efficiency, reducing power loss and helping lower overall energy consumption.
• Reliable Backup for Multiple Devices: It can support multiple low-power devices such as PCs, routers, and DVR systems at the same time depending on total load.

Applications

• Desktop Computers and Workstations: It provides backup power that allows users to continue working or safely shut down computers during unexpected power outages, preventing data loss and system damage.
• Home and Office Networking Equipment: It is ideal for routers, switches, and modems, ensuring uninterrupted internet connectivity during power cuts for smooth communication and online work.
• CCTV and Security Systems: The UPS keeps DVRs, NVRs, and surveillance cameras running during outages, ensuring continuous security monitoring without interruption.
• Point-of-Sale (POS) Systems: It supports retail checkout systems in shops and supermarkets, helping avoid transaction interruptions and system downtime during blackouts.
• Small Business Equipment: It powers essential devices such as printers, small servers, and office terminals, helping businesses maintain productivity during unstable power supply.
• Home Entertainment Systems: It can be used to protect TVs, media players, and gaming consoles from sudden shutdowns and voltage fluctuations.
• Telecommunication Devices: It ensures stable power for VoIP phones and communication systems used in offices and call centers.
• School and Learning Environments: It supports computers and e-learning devices in classrooms, helping students continue learning during brief power interruptions.
