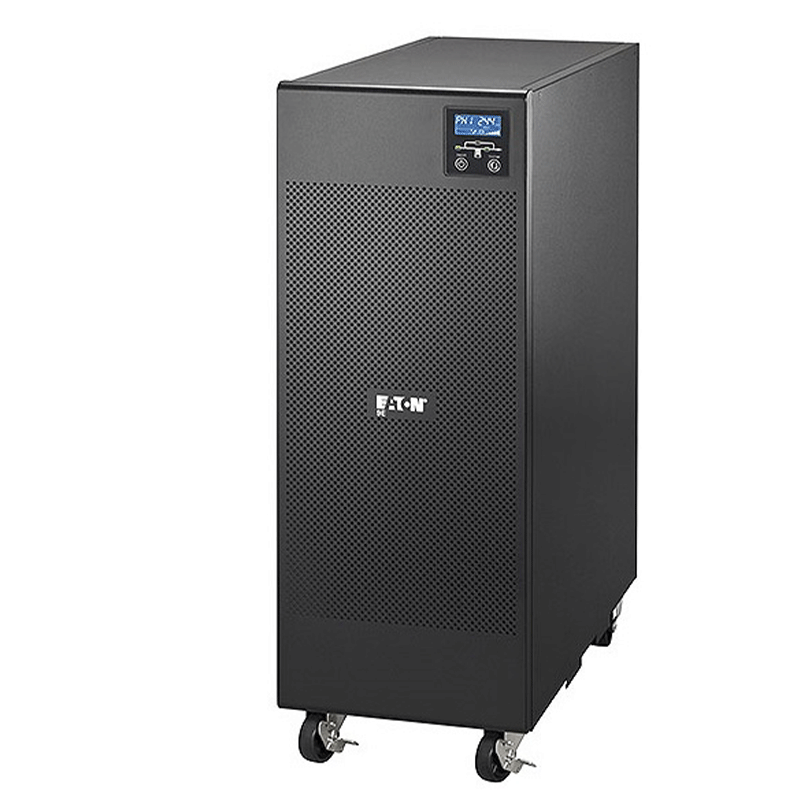

Eaton 9E UPS 6000VA/4800W Online Double Conversion, Single Phase, Max Current 82A, Tower Format

Product Description

The Eaton 9E 6000VA / 4800W UPS is a high‑performance, online double‑conversion uninterruptible power supply designed to protect critical equipment in demanding environments. Built in a robust tower format, this UPS delivers reliable, clean, and continuous power to servers, network infrastructure, storage devices, telecommunications equipment, and other essential systems.

Featuring true online double‑conversion technology, the Eaton 9E continuously regenerates output power, fully isolating connected loads from input anomalies such as brownouts, spikes, surges, and frequency variations. This ensures that sensitive electronics always receive stable, regulated power with zero transfer time during outages.

With a rating of 6000 VA / 4800 W, it supports high‑capacity loads and offers a maximum current capability of 82 A, making it suitable for demanding commercial and light‑industrial applications. The UPS includes internal batteries for immediate runtime and can be paired with optional external battery modules to extend backup time during prolonged power failures.

The unit is equipped with an intuitive LCD status display, intuitive controls, and communication interfaces (USB/RS‑232 and optional network management cards) for seamless integration into monitoring and management systems. An internal bypass ensures continuity of power in the event of a UPS fault or maintenance.

Designed for durability, the Eaton 9E features efficient power conversion, advanced battery management, and protective features such as overload and short‑circuit handling. Its tower format allows flexible installation in offices, server rooms, and industrial spaces where space and reliability are priorities.

Electrical Specifications

Topology & Power

• Topology: Online Double‑Conversion (true online) — isolates load from input power anomalies.
• Rated Power: 6000 VA / 4800 W.
• Power Factor: 0.8.

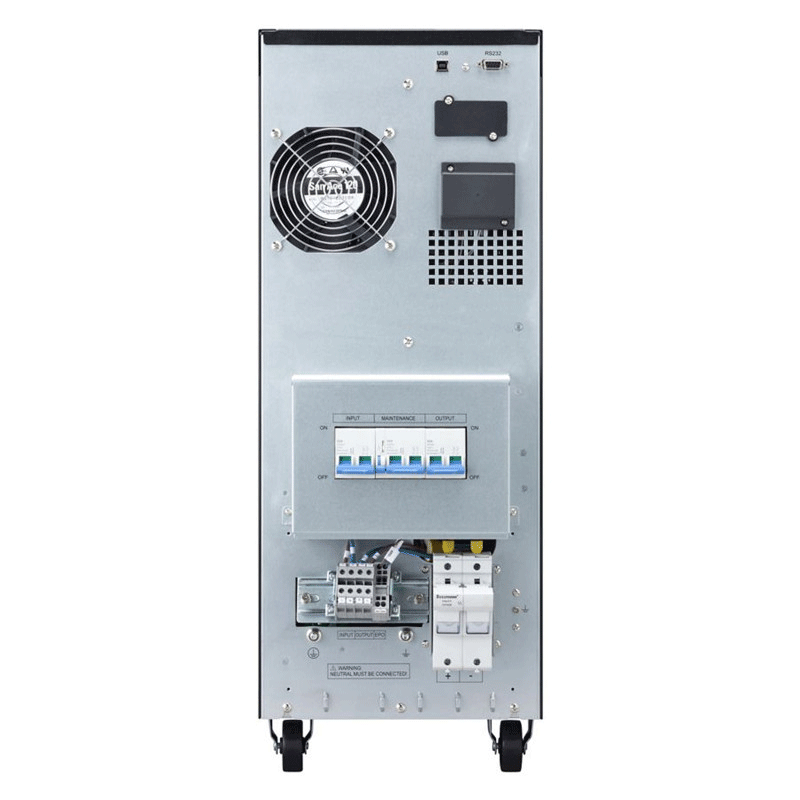

• Input Phase: Single‑phase (hardwired connection).
• Output Phase: Single‑phase (hardwired).

Input

• Nominal Voltage: 230 V (configurable 220/230/240 V).
• Input Voltage Range: 176–276 V without derating (110–276 V with derating).
• Nominal Frequency: 50/60 Hz.
• Input Frequency Range: 45–66 Hz.
• Input Power Factor: > 0.99.

Output

• Nominal Voltage: 230 V (configurable 220/230/240 V ± 2 %).
• Output Waveform: Pure sine wave.
• Output Voltage Distortion: < 3 % (linear load).
• Output Frequency: 50/60 Hz.

Battery Specifications

• Battery Type: Sealed lead‑acid, replaceable.
• Battery Quantity: 15 units (12 V / 9 Ah each).
• Battery Management: Automatic self‑test and deep‑discharge protection.
• Extended Battery Capability: Supported (up to 4 external battery modules).

Communications & Management

• User Interface: LCD display for status, load, battery and measurements.
• Communication Ports:
  • USB (HID compliant)
  • RS‑232 serial
  • Mini terminal block for remote power off
  • Slot for optional communication cards (SNMP/Modbus)
• Software Compatibility: Eaton Intelligent Power Manager / Intelligent Power Protector.
• Potential Free Switch Contact: Yes.

Physical & Environmental

• Form Factor: Tower / freestanding.
• Dimensions (HxWxD): 70.85 × 26.24 × 61.29 cm.
• Weight: ~68 kg.
• Operating Temperature: 0 °C to 40 °C.
• Humidity: 0 – 95 % non‑condensing.
• Noise Level: < 55 dB at 1 m.
• Altitude Rating: Up to 3000 m.

Additional Features

• Internal Bypass: Yes (ensures continuity during UPS maintenance or fault).
• Auto Shutdown Function: Yes.
• Compliance & Certification: IEC/EN 62040‑1 &‑2, CE, EAC.
• Efficiency: ~91 % at full load

Highlights

• True online double‑conversion design protects sensitive electronics from voltage sags, spikes, and outages with clean power delivery.
• High short‑circuit current handling (82 A) and internal bypass improve reliability.
• Expandable runtime with external batteries — useful for longer outages.
• Suitable for IT racks, servers, networking gear, industrial loads, and telecom environments.

Applications

1. Server Rooms & Data Centers
   • Provides clean, uninterrupted power to critical servers, storage devices, and networking equipment.
   • Protects against downtime caused by brownouts, blackouts, and voltage fluctuations.
2. Telecommunications & Networking
   • Ensures reliable operation of switches, routers, PBX systems, and VoIP equipment.
   • Maintains network uptime during power disturbances.
3. Industrial & Manufacturing Equipment
   • Suitable for sensitive industrial controllers, PLCs, and automation systems.
   • Guards against production interruptions due to power quality issues.
4. Medical & Laboratory Equipment
   • Supports medical devices, lab instruments, and diagnostic machines requiring stable power.
   • Reduces risk of equipment malfunction or inaccurate readings.
5. Financial & Commercial Offices
   • Protects workstations, POS systems, ATMs, and office computers from power outages.
   • Ensures continuity of operations in banks, offices, and commercial facilities.
6. Security & Surveillance Systems
   • Maintains continuous operation of CCTV cameras, access control, and alarm systems.
   • Prevents data loss or interruption in security monitoring.
7. IT Infrastructure & Cloud Environments
   • Ideal for small-to-medium IT setups, edge computing nodes, and cloud server racks.
   • Provides high-quality power for virtualization, storage, and networking devices.
