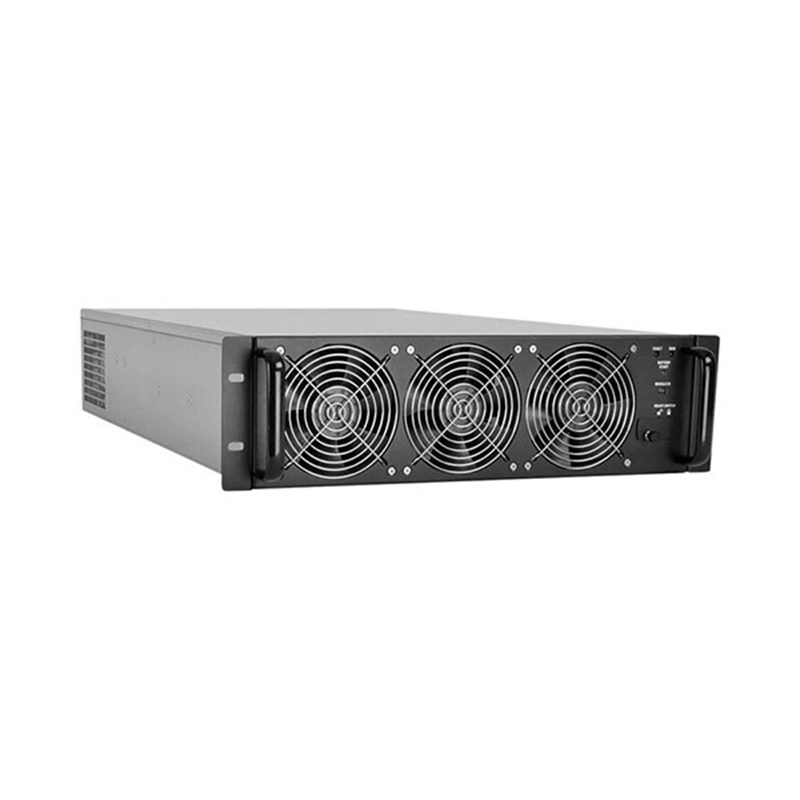

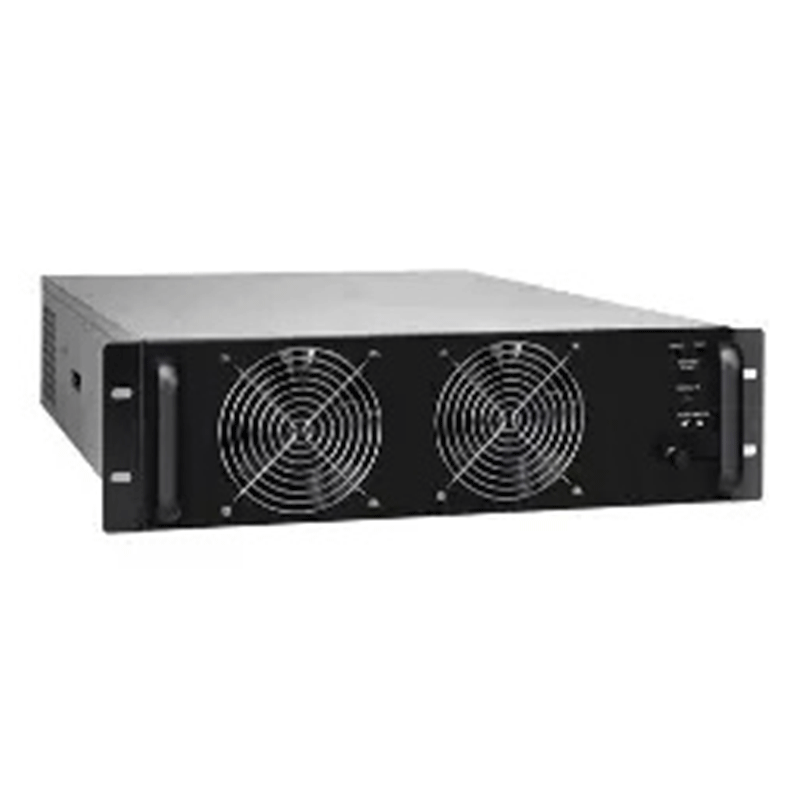

POWER MODULE FOR 20KVA UPS

Description Overview

The 20KVA UPS Power Module is a high-performance, hot-swappable unit designed for modular UPS systems, delivering reliable and scalable power protection for mission-critical applications. Built with advanced IGBT inverter technology and DSP digital control, it ensures stable output, high efficiency, and low harmonic distortion. The modular design allows easy expansion in 20kVA increments, enabling businesses to increase capacity as power demands grow.

This power module supports N+1 redundancy for enhanced reliability, ensuring continuous operation even during maintenance or module replacement. With online double-conversion topology, it provides clean and uninterrupted power, protecting sensitive equipment from voltage fluctuations, outages, and electrical noise. Its compact form factor, intelligent cooling system, and parallel operation capability make it ideal for data centers, telecom infrastructure, medical facilities, and industrial environments.

Typical Specifications (20KVA Power Module)

• Capacity: 20kVA / 20kW
• Input Voltage: 380/400/415VAC (3-phase)
• Output Voltage: 380/400/415VAC
• Input Power Factor: >0.99
• THDi: <3%
• Efficiency: Up to 94–95%
• Hot-swappable modular design
• DSP controlled with IGBT technology
• Parallel expansion capability
  These specs allow scalable architecture and easy maintenance in modular UPS systems.

Key Features of the 20KVA UPS Power Module

• Hot-Swappable Modular Design – Easily install, replace, or upgrade modules without shutting down the UPS.
• Scalable Capacity – Expand UPS power in 20kVA increments to meet growing energy demands.
• N+1 Redundancy Support – Ensures continuous operation even if a module fails.
• Online Double-Conversion Topology – Provides clean and uninterrupted power to sensitive equipment.
• High Efficiency (Up to 95%) – Reduces energy losses and operating costs.
• Low Total Harmonic Distortion (THDi < 3%) – Protects electrical infrastructure from distortions.
• IGBT Inverter Technology – Offers fast and precise power conversion.
• DSP Digital Control – Intelligent monitoring and optimized performance for reliability.
• Independent Battery Charging per Module – Each module manages its own battery for better backup support.
• Advanced Cooling System – Maintains optimal temperature and ensures long-term module life.
• Parallel Operation Capability – Multiple modules can work together for higher capacity or redundancy.

Applications

• Data centers
• Server rooms
• Network infrastructure
• Industrial automation
• Medical equipment
• Telecom sites

Why Choose a 20KVA UPS Power Module?

• 🔄 Hot-Swappable Design – Replace or add modules without shutting down the UPS, ensuring continuous power availability.
• ➕ Scalable Capacity – Expand your UPS system in 20kVA increments as your power needs grow.
• 🛡️ N+1 Redundancy Support – Improves reliability by allowing backup modules to take over in case of failure.
• ⚡ Online Double-Conversion Technology – Provides clean, stable power and protects sensitive equipment from disturbances.
• 📉 Low Harmonic Distortion – Minimizes impact on electrical infrastructure and improves overall efficiency.
• 🔋 Independent Module Operation – Each module works autonomously for better fault isolation and maintenance.
• 🧠 Advanced DSP Control – Ensures precise performance monitoring and optimized power management.
• 🧊 Efficient Cooling System – Maintains optimal operating temperature for longer lifespan.
• 🏢 Ideal for Critical Applications – Perfect for data centers, telecom, medical, and industrial environments.
