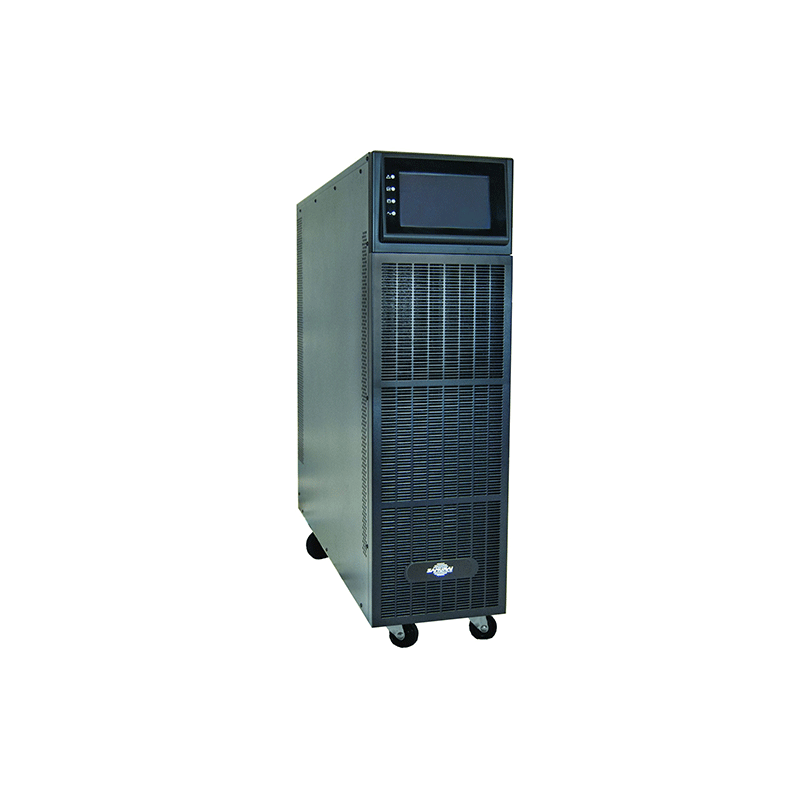

15kVA/15kW Online UPS (1:1ph & 3:1ph)

15kVA/15kW Online UPS (1:1ph & 3:1ph) – High Efficiency & Reliable Power Backup

Description

Ensure uninterrupted power for your critical systems with this 15kVA/15kW online UPS, supporting both single-phase to single-phase (1:1ph) and three-phase to single-phase (3:1ph) configurations. Designed for maximum reliability and high load efficiency, it features a power factor of 1.0, allowing full utilization of its capacity.

Equipped with a user-friendly LCD display, you can monitor system status, battery levels, and operational parameters at a glance. The UPS comes with 2×20pcs 9Ah/12V built-in batteries, providing instant backup, and supports up to 4 units in parallel for higher capacity or redundancy.

Communication and remote management are made easy through RS232, RS485, USB ports, and an SNMP slot (SNMP card not included). This UPS is ideal for data centers, offices, medical facilities, and industrial environments where stable, uninterrupted power is critical.

Specifications

• Capacity: 15kVA / 15kW

• Input/Output: 1:1ph & 3:1ph

• Power Factor: 1.0

• Battery: 2×20pcs * 9Ah/12V built-in batteries

• Display: LCD display for status and monitoring

• Parallel Capability: Supports up to 4 units in parallel

• Interfaces: RS232, RS485, USB, SNMP slot

• SNMP Card: Not included

Key Features

1. High Efficiency: True online double-conversion design ensures stable power output.

2. Flexible Deployment: Can be used in 1:1ph or 3:1ph setups.

3. Expandable Battery Capacity: Built-in batteries provide immediate backup; additional units can extend runtime.

4. Parallel Function: Up to 4 UPS units can operate in parallel for increased capacity or redundancy.

5. Comprehensive Monitoring: LCD interface and multiple communication ports (RS232/RS485/USB) allow easy system monitoring.

Applications

• Data centers and server rooms

• Industrial control systems

• Medical equipment and labs

• Critical office equipment

• Telecommunication facilities

Why Choose This UPS?

• High reliability with PF1.0 for maximum load utilization

• Flexible configuration options (1:1ph & 3:1ph)

• Expandable with parallel units for growing power needs

• Clear LCD interface for easy operation

• Multiple communication options for remote monitoring
