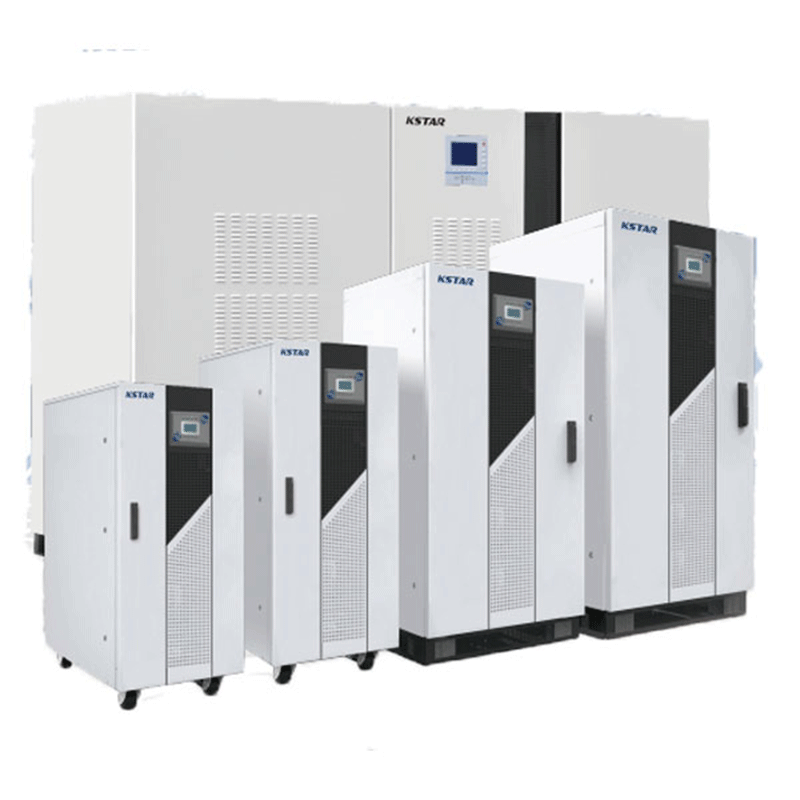

100kVA Transformer-Based Online UPS 3:3 PF0.9

100kVA Transformer-Based Online UPS 3:3 PF0.9– Parallel Redundant, RS232/RS485, No Built-in Battery

Description

Reliable, industrial-grade power protection for critical equipment. This 100kVA transformer-based online UPS delivers stable 3-phase output with a 0.9 power factor and supports parallel redundancy of up to 6 units. Equipped with RS232 and RS485 ports for remote monitoring and an Emergency Power Off (EPO) feature, it ensures safe and uninterrupted operation. Built-in batteries are not included, allowing flexible connection to external battery banks as needed.

Specifications:

• Capacity: 100kVA / 90kW

• Type: Transformer-based Online UPS

• Configuration: 3-phase input / 3-phase output (3:3)

• Power Factor: 0.9

• Input Voltage: 380/400/415Vac (-25% / +20%), 3Ph+PE

• Input Frequency: 50/60Hz ±5%

• Output Voltage: 380/400/415Vac ±1%, 3Ph+N+PE

• Output Frequency: 50/60Hz ±0.05%

• Parallel Redundancy: Up to 6 units

• Communication Ports: RS232 & RS485

• Safety Feature: Emergency Power Off (EPO)

• Built-in Battery: Not included

• Optional Add-ons: Dry contact, SNMP card, Parallel cable (not included)

Features:

• Transformer-Based Online Design: Provides robust double-conversion technology to deliver clean and stable power, protecting sensitive equipment from voltage fluctuations and power disturbances.

• High Capacity (100kVA / 90kW): Supports large loads and critical systems, making it ideal for data centers, industrial applications, and telecom infrastructure.

• 3-Phase Input / 3-Phase Output (3:3): Ensures balanced power distribution and efficient operation for three-phase equipment.

• Power Factor 0.9: Optimizes energy efficiency and reduces losses, ensuring the UPS delivers maximum usable power to connected devices.

• Wide Input Voltage Range (-25% / +20%): Maintains uninterrupted operation even during voltage sags or surges in the utility supply.

• Precise Output Voltage (±1%): Delivers stable voltage to protect sensitive equipment from damage or operational disruptions.

• Parallel Redundancy up to 6 Units: Allows multiple UPS units to work together, increasing system reliability and providing scalable backup for growing power needs.

• RS232 & RS485 Communication Ports: Enables remote monitoring and integration with network management systems for real-time status updates.

• Emergency Power Off (EPO): Provides a safety mechanism to quickly shut down the UPS during emergencies, protecting personnel and equipment.

• Modular Add-ons (Optional): Supports additional features like SNMP cards, dry contacts, or parallel cables for enhanced monitoring and integration.

• Without Built-in Battery: Offers flexibility to connect external battery banks according to runtime requirements and site preferences.

Applications:

• Data Centers: Ensures uninterrupted power for servers, storage systems, and networking equipment, protecting against downtime and data loss.

• Industrial Facilities: Provides stable power to machinery, control systems, and automation equipment, preventing production interruptions caused by voltage fluctuations.

• Telecommunication Systems: Supports telecom infrastructure, including base stations and switching centers, maintaining continuous communication services.

• Healthcare & Hospitals: Protects critical medical equipment, such as imaging devices and life-support systems, from power disturbances.

• Financial Institutions: Maintains reliable operation of ATMs, trading systems, and data servers, safeguarding sensitive financial transactions.

• Critical Infrastructure: Ideal for government facilities, transportation hubs, and utility systems where reliable power is essential.

Why Choose This UPS:

• High Reliability: Its transformer-based online design and parallel redundancy up to 6 units ensure uninterrupted power for critical systems.

• Stable and Precise Output: Provides ±1% voltage accuracy and a wide input voltage range, protecting sensitive equipment from fluctuations and surges.

• Scalable Protection: Parallel capability allows the system to grow with your power requirements, supporting larger loads or future expansion.

• Flexible Communication & Monitoring: RS232 and RS485 ports enable remote monitoring, integration with network management, and real-time system control.

• Safety Features: Includes Emergency Power Off (EPO) to quickly shut down the system during emergencies, ensuring safety for personnel and equipment.

• Customizable Battery Solutions: With no built-in battery, you can tailor backup runtime using external battery banks according to your operational needs.
