GENERAL

• Packaged Quantity
  1
• Embedded Security
  Trusted Platform Module (TPM 2.0) Security Chip
• Manufacturer
  HP

PROCESSOR / CHIPSET

• CPU
  Intel Core i7 (7th Gen) 7700HQ / 2.8 GHz
• Max Turbo Speed
  3.8 GHz
• Number of Cores
  Quad-Core
• Cache
  6 MB
• 64-bit Computing
  Yes
• Chipset Type
  Mobile Intel CM236 Express
• Features
  Hyper-Threading Technology, Intel Smart Cache, Intel Turbo Boost Technology 2.0

CACHE MEMORY

• Installed Size
  6 MB

STORAGE

• Interface
  PCIe

RAM

• Memory Speed
  2400 MHz
• Memory Specification Compliance
  PC4-19200
• Configuration Features
  1 x 16 GB
• Technology
  DDR4 SDRAM
• Installed Size
  16 GB
• Data Integrity Check
  non-ECC
• Rated Memory Speed
  2400 MHz

MEMORY

• Max Supported Size
  64 GB
• Technology
  DDR4 SDRAM – non-ECC
• Speed
  2400 MHz / PC4-19200
• Form Factor
  SO-DIMM 260-pin
• Slots Qty
  4
• Empty Slots
  3

DISPLAY

• LCD Backlight Technology
  LED backlight
• Resolution
  1920 x 1080 (Full HD)
• Widescreen Display
  Yes
• Monitor Features
  Full HD anti-glare
• Type
  LED
• Diagonal Size (metric)
  39.6 cm
• Display Resolution Abbreviation
  Full HD

AUDIO & VIDEO

• Multi-GPU Configuration
  1 single GPU card / integrated GPU
• Graphics Processor
  NVIDIA Quadro M1200 / Intel HD Graphics 630
• Sound
  Stereo speakers, two microphones
• Features
  Bang & Olufsen Audio

HARD DRIVE

• Type
  SSD
• SSD Form Factor
  M.2
• Capacity
  512 GB
• Hard Drive Features
  HP Z Turbo Drive, NVM Express (NVMe)

INPUT

• Type
  keyboard, pointing stick, touchpad
• Localization & Layout
  US
• Features
  spill-resistant, touchpad with gesture support, volume control

COMMUNICATIONS

• Wired Protocol
  Gigabit Ethernet
• Features
  Wake-on-LAN (WOL)

OPTICAL STORAGE

• Drive Type
  no optical drive
• Type
  none

PROCESSOR

• CPU Type
  Core i7
• Processor Number
  i7-7700HQ
• Generation
  7
• Manufacturer
  Intel
• Clock Speed
  2.8 GHz

CARD READER

• Type
  card reader
• Supported Flash Memory
  SD Memory Card, SDHC Memory Card, SDXC UHS-II Memory Card

BATTERY

• Capacity
  90 Wh
• Cells
  9-cell
• Technology
  lithium polymer

AC ADAPTER

• Input
  AC 120/230 V (50/60 Hz)
• Output
  150 Watt

CONNECTIONS & EXPANSION

• Interfaces
  2 x USB-C/Thunderbolt 3/DisplayPort
  3 x USB 3.0
  Headphone/microphone combo jack
  HDMI
  VGA
  LAN
• Memory Card Reader
  Yes (SD Card, SDHC Card, SDXC UHS-II Card)

HEADER

• Brand
  HP
• Product Line

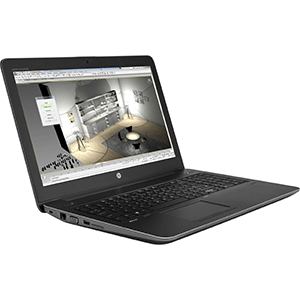

  HP ZBook
• Model
  15 G4 Mobile Workstation
• Localization
  English
• Country Kits
  United States
• Packaged Quantity
  1

NETWORKING

• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• Compliant Standards
  IEEE 802.11i, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Ethernet Controller(s)
  Intel I219-LM

MISCELLANEOUS

• Security
  Trusted Platform Module (TPM 2.0) Security Chip, smart card reader
• Features
  HP 3D DriveGuard, HP Automatic Drive Lock, HP BIOS Protection, HP DriveLock, HP DuraKeys, HP SpareKey, HP SureStart, Hybrid Boot, Master Record Security, Measured Boot, Power On Authentication, Pre-Boot Security, SecureBoot, soft-touch surface
• Compliant Standards
  A-Tick, ACPI, BSMI, CCC, CSA, Common Criteria EAL4+, FCC, ICES, KCC, RoHS, UL, VCCI, WEEE, low halogen
• Included Accessories
  power adapter
• Manufacturer Selling Program
  HPE Smart Buy
• Theft/Intrusion Protection
  security lock slot (cable lock sold separately)
• Security Slot Type
  Kensington security slot

MONITOR

• Diagonal Size
  15.6 in
• Image Brightness
  300 cd/m2

SYSTEM

• Notebook Type
  notebook
• Platform
  Windows
• Hard Drive Capacity
  512 GB
• Embedded Security
  Trusted Platform Module (TPM 2.0) Security Chip
• Security Devices
  SmartCard reader

DIMENSIONS & WEIGHT

• Width
  15.2 in
• Depth
  10.4 in
• Height
  1 in

MANUFACTURER WARRANTY

• Type
  3 years warranty

MAINBOARD

• Chipset Type
  Mobile Intel CM236 Express

ENVIRONMENTAL STANDARDS

• ENERGY STAR Certified
  Yes

PHYSICAL CHARACTERISTICS

• Weight
  5.73 lbs

OPERATING SYSTEM / SOFTWARE

• OS Provided: Type
  Windows 10 Pro 64-bit Edition
• Type
  Bing Toolbar, HP Client Security Suite Gen3, HP Hotkey Support, HP JetAdvantage, HP JumpStart, HP LAN-WLAN Protection, HP Noise Cancellation, HP Performance Advisor, HP Recovery Manager, HP Remote Graphics Software, HP Support Assistant, HP Velocity, HP Workwise, HP ePrint, Skype

VIDEO OUTPUT

• Discrete Graphics Processor
  Yes
• Multi-GPU Configuration
  1 single GPU card / integrated GPU
• Graphics Processor
  NVIDIA Quadro M1200 / Intel HD Graphics 630
• Graphics Processor Series
  Intel HD Graphics, NVIDIA Quadro

VIDEO MEMORY

• Technology
  GDDR5 SDRAM
• Installed Size
  4 GB

INPUT DEVICE

• Numeric Keypad
  Yes
• Backlight
  Yes

INTERFACES

• USB-C Ports Qty
  2

SERVICE & SUPPORT

• Type
  3 years warranty

SERVICE & SUPPORT DETAILS

• Type
  limited warranty
• Service Included
  parts and labor
• Location
  on-site
• Full Contract Period
  3 years
