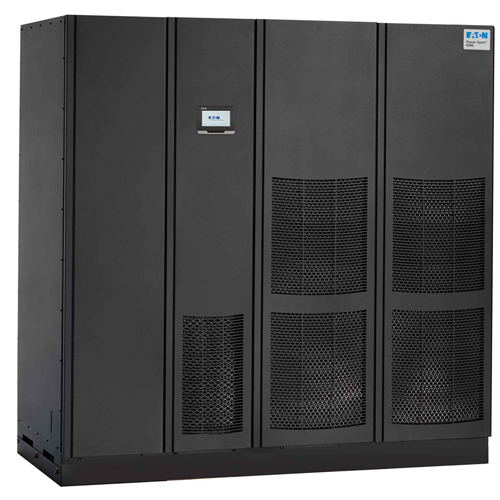

Eaton 9395 UPS family

Key Sub-Families / Variants

1. Eaton 9395XC UPS

• Compact footprint with very high power density.

• Power rating: up to ~1500 kVA/kW (1.5 MW) depending on configuration.

• Up to ~97.5 % efficiency in double conversion mode.

• Designed to maximize kW per square foot for large installations.

2. Power Xpert 9395P High Performance UPS

• Next-generation high-efficiency version.

• Power rating range: ~200 – 1200 kVA/kW (scalable).

• Up to ~97 % double-conversion efficiency.

• Uses a three-level converter topology for higher performance and lower heat.

• Supports multiple input voltage options (480 V, 400 V, 600 V).

3. Power Xpert 9395 UPS (Standard)

• Proven, cost-effective UPS solution in the family.

• Power rating range: ~225 – 1100 kVA.

• Standard double-conversion efficiency ~94 %.

• Available in 480 V and 400 V versions.

 General Technical Highlights

Power & Scalability

• Power ratings span roughly 200 kVA up to 1500 kVA/kW, depending on variant.

• Can be paralleled for redundancy (e.g., N+1) and higher total capacity.

• Field upgradable — modules and capacity can be expanded as demand grows.

Efficiency

• Efficiency up to ~99 % in Energy Saver System (ESS) mode.

• Double conversion efficiency is typically ~94–97 % (varies by model).

Battery Options

• Supports traditional VRLA, AGM, wet cell, and lithium-ion batteries for longer life and higher energy density.

• Scalable runtime with external battery cabinets.

Management & Connectivity

• Large color LCD touchscreen for status and control.

• Remote monitoring available via Eaton PredictPulse and intelligent management software options.

Form Factor & Installation

• Tower/stand-alone configuration.

• Modular architecture simplifies maintenance and reduces downtime.

Typical Use Cases

These UPS systems are ideal for:

• Large enterprise data centers

• Mission-critical infrastructure (e.g., healthcare, government)

• Industrial environments

• Multi-tenant or colocation data facilities

• Edge sites requiring scalable UPS capacity
